Oil Cooler Water Pipe Component Installation Note

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Install the oil cooler water pipe component in the order shown in the figure.

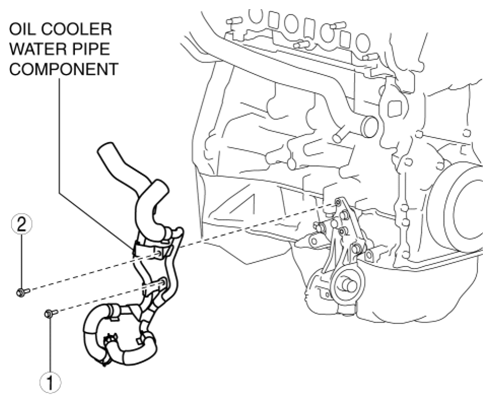

Fig 1: Installing Oil Cooler Water Pipe Component
Courtesy of MAZDA

Tightening torque
- 8-11 N.m {82-112 kgf.cm, 71-97 in.lbf}
