No. 4 Engine Mount: Notes

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Slots have been adopted for the No. 4 engine mount bracket installation holes. If the No. 4 engine mount bracket is deviated from the original position when installing the No. 4 engine mount bracket, engine noise or vibration could increase. Before removing the No. 4 engine mount bracket, place alignment marks on the No. 4 engine mount bracket so that they can be assembled to the same positions as before removal.
  1. Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the air cleaner, air hose and fresh air duct as a single unit. (Refer to INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  3. Remove the battery tray and PCM component. (Refer to BATTERY REMOVAL/INSTALLATION .)
  4. Remove the bolts shown in the figure and set the ground cable aside.

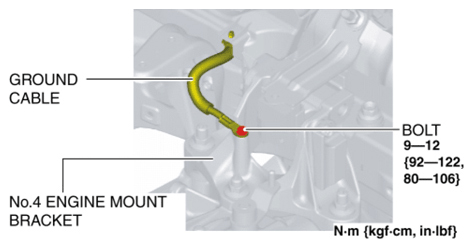

    Fig 1: Identifying Ground Cable And Bolts With Torque Specification
    G10968683Courtesy of MAZDA
  5. Remove in the order indicated in the table.
  6. Install in the reverse order of removal.

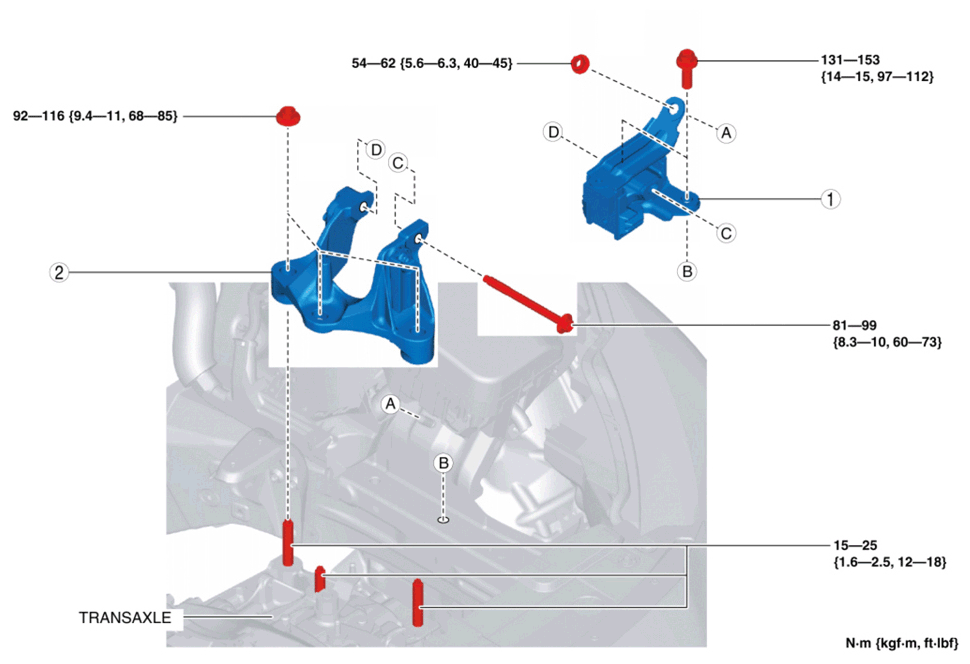

    Fig 2: Identifying No. 4 Engine Mount Components With Torque Specification
    G10968684Courtesy of MAZDA
    COMPONENT DESCRIPTION

    1 No. 4 engine mount rubber
    (See No. 4 engine mount rubber removal note .)
    (See No. 4 engine mount rubber installation note .)
    2 No. 4 engine mount bracket
    (See No. 4 engine mount bracket removal note .)
    (See No. 4 engine mount bracket installation note .)
