Rear Oil Seal Replacement: Notes

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Remove the transaxle. (Refer to AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [EW6A-EL] (2WD).) (Refer to AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [EW6AX-EL] (4WD).)
Remove the drive plate. (Refer to DRIVE PLATE REMOVAL/INSTALLATION [EW6A-EL/EW6AX-EL] .)
Remove in the order indicated in the table.

Install in the reverse order of removal.

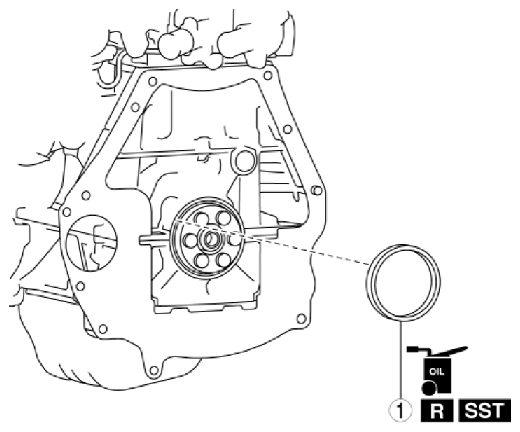

Fig 1: Removing Rear Oil Seal

Courtesy of MAZDA

COMPONENT DESCRIPTION

1	Rear oil seal (See Rear Oil Seal Removal Note .) (See Rear Oil Seal Installation Note .)
