Engine Front Cover Removal Note

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Remove the nut shown in the figure and set the cooler hose (LO) aside.

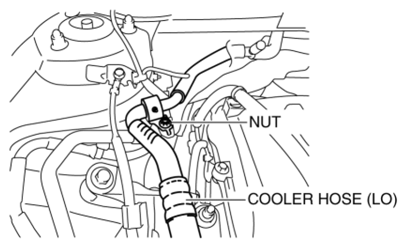

Fig 1: Identifying Cooler Hose (LO) And Nut
Courtesy of MAZDA
Remove the insulator shown in the figure.

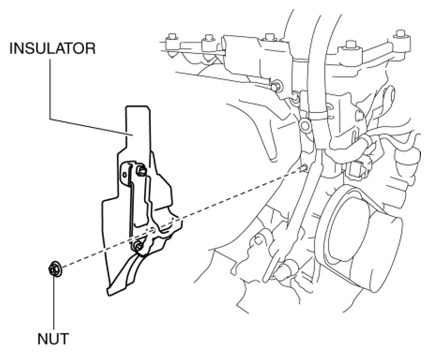

Fig 2: Removing Insulator
Courtesy of MAZDA
Set the ground cable and wiring harness bracket shown in the figure aside.

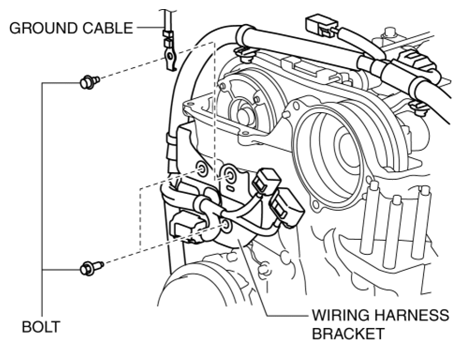

Fig 3: Setting Ground Cable And Wiring Harness Bracket
Courtesy of MAZDA
Remove the engine front cover installation bolts.
Using a screwdriver wrapped in a cloth, peel the sealant away a little at a time, and remove the engine front cover.
CAUTION:
- Do not apply excessive force to the screwdriver. Otherwise, the engine front cover could be damaged.
- Be careful not to scratch or damage the seal surface. Otherwise, it could cause oil leakage.

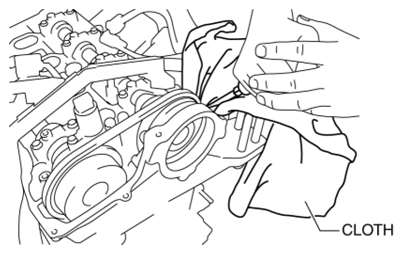

Fig 4: Cleaning Engine Front Cover Using Screwdriver Wrapped In Cloth (1 Of 2)
Courtesy of MAZDA

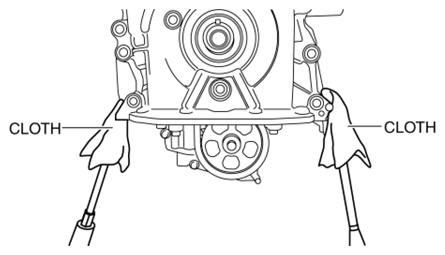

Fig 5: Cleaning Engine Front Cover Using Screwdriver Wrapped In Cloth (2 Of 2)
