Full-auto Air Conditioner: Notes

  1. Disassemble in the order indicated in the table.
    CAUTION:
    • If a non-specified grease is used, it may result in abnormal noise or an operation malfunction of the links. Use only a grease coating agent on each link and do not wipe off or add additional grease.

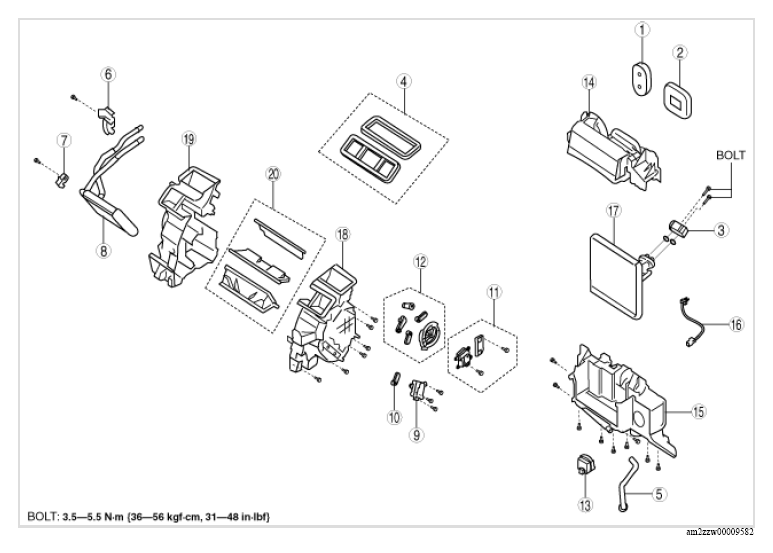

    Fig 1: Exploded View Of A/C Unit With Torque Specification
    G13150920Courtesy of MAZDA MOTORS CORP.

    x: Applicable-: Not applicable

    PART DESCRIPTION

    Step Part name Disassembly/assembly of main parts
    Heater core Evaporator temperature sensor Evaporator
    1 Polyurethane foam A x x x
    2 Polyurethane foam B - x x
    3 Expansion valve - - x
    4 Adhesive polyurethane - - -
    5 Drain hose - - -
    6 Plate A x x x
    7 Plate B x x x
    8 Heater core x x x
    9 Air mix actuator - - -
    10 Air mix link - - -
    11 Airflow mode actuator - - -
    12 Airflow mode link set - - -
    13 Blower fan controller - - -
    14 A/C case A - x x
    15 A/C case B - x x
    16 Evaporator temperature sensor (See EVAPORATOR TEMPERATURE SENSOR ASSEMBLY NOTE .) - x x
    17 Evaporator - - x
    18 A/C case C - - -
    19 A/C case D - - -
    20 Door damper - - -
  2. Assemble in the reverse order of disassembly.
