Blower Motor Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the dashboard under cover. (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
  3. Disconnect the blower motor connector.
    G11431294Courtesy of MAZDA MOTORS CORP.
  4. Remove the screws.

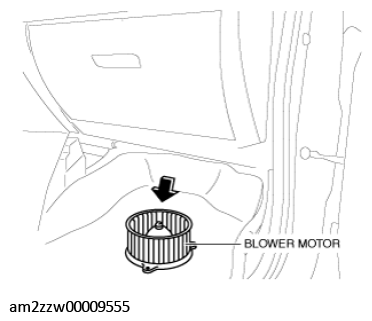

  5. Remove the blower motor.
    G11431295Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
