Front Heat Duct Removal/Installation: Passenger-side

  1. Remove the passenger-side side wall. (See SIDE WALL REMOVAL/INSTALLATION .)
  2. Remove the dashboard under cover. (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)

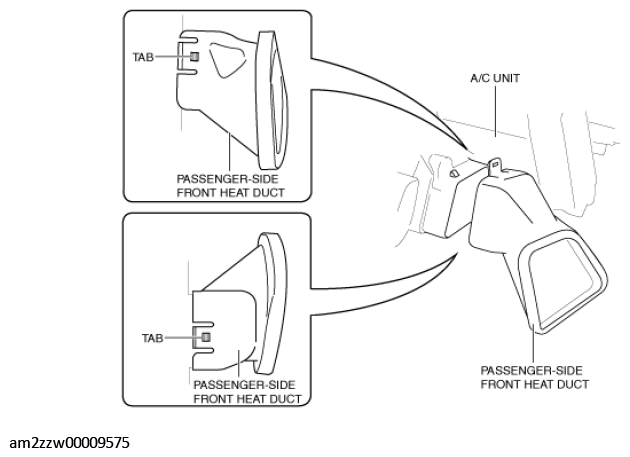

  3. Detach the tab.
    G11431313Courtesy of MAZDA MOTORS CORP.
  4. Remove the passenger-side front heat duct.
  5. Install in the reverse order of removal.
