A/C Compressor Pulley Installation Note

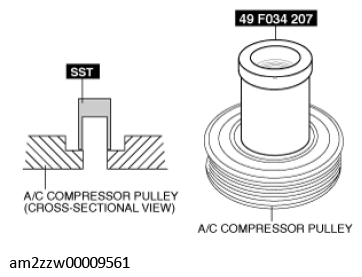

Set the SST (49 F034 207) as shown in the figure.

Courtesy of MAZDA MOTORS CORP.

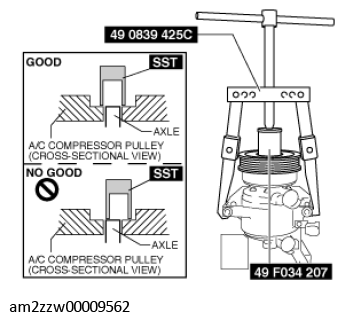

Install the inner wheel of the A/C compressor pulley using SST (49 0839 425C, 49 F034 207) to the compressor.

Courtesy of MAZDA MOTORS CORP.
CAUTION:
- If the SST is not properly positioned when the A/C compressor pulley is press-fit, the A/C compressor axle will interfere with the SST, possibly damaging component parts. Verify the SST and axle are properly positioned and perform the procedure very carefully.
