Mounting Rubber Installation Note

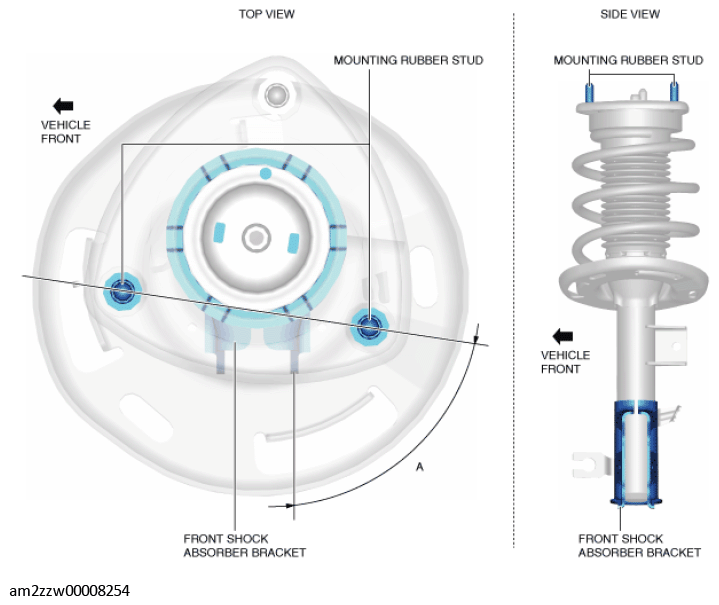

  1. Install the mounting rubber so that the mounting rubber stud and the front shock absorber bracket are at angle A shown in the following figure.
    G11438132Courtesy of MAZDA MOTORS CORP.

    A: 82°±5°
