Symptom Troubleshooting - Transaxle
›
Foreword
›
Troubleshooting Procedure

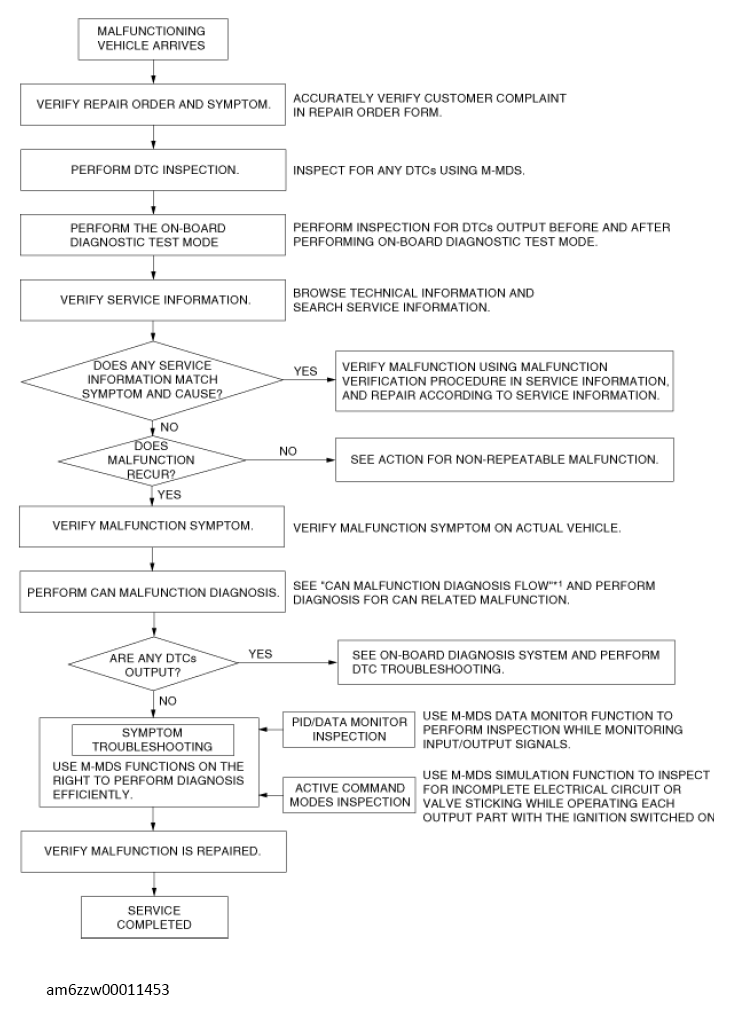

Troubleshooting Procedure
Courtesy of MAZDA MOTORS CORP.
*1: CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW
Courtesy of MAZDA MOTORS CORP.
