Rear Wiper Motor Removal/Installation: Notes

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the rear wiper arm and blade. (See REAR WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
Remove the liftgate lower trim. (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)

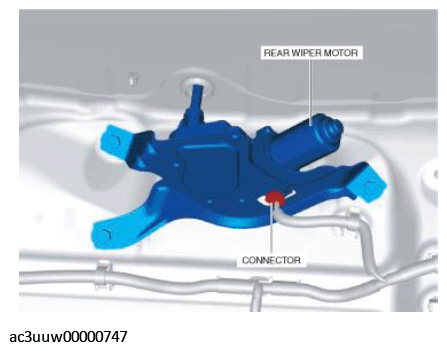

Disconnect the connector.

Courtesy of MAZDA MOTORS CORP.

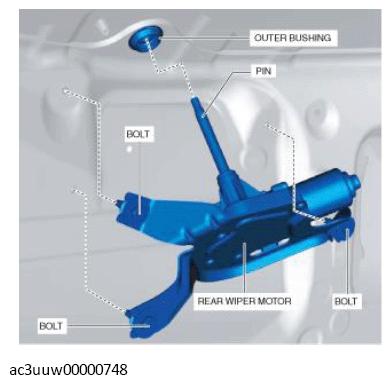

Remove the bolts. (See REAR WIPER MOTOR INSTALLATION NOTE .)

Courtesy of MAZDA MOTORS CORP.
Pull out the rear wiper motor pin from the outer bushing and remove the rear wiper motor.
Remove the outer bushing.

Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
