Upper Radiator Hose Installation Note

Install the upper radiator hose using the following procedure:

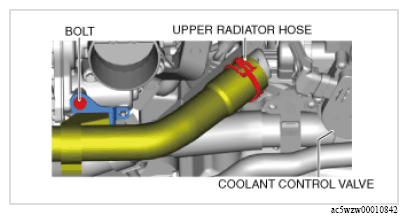

Tighten the bolt shown in the figure.

Courtesy of MAZDA MOTORS CORP.

Tightening torque

8-10 N.m {82-101 kgf.cm, 71-88 in.lbf}

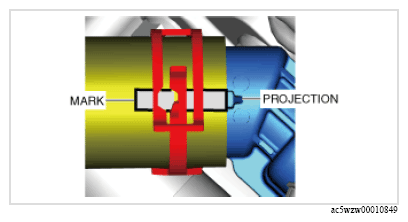

Connect the upper radiator hose to the coolant control valve so that the projection position is aligned with the mark.
