Drive Belt Auto Tensioner Installation Note

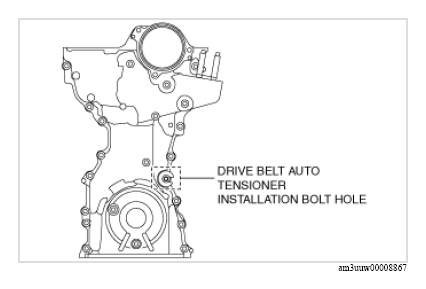

  1. Remove the temporarily assembled bolt at the location shown in the figure.
    G13149283Courtesy of MAZDA MOTORS CORP.
  2. Install the drive belt auto tensioner. (See DRIVE BELT AUTO TENSIONER REMOVAL/INSTALLATION .)
