Air Cleaner Case Installation Note

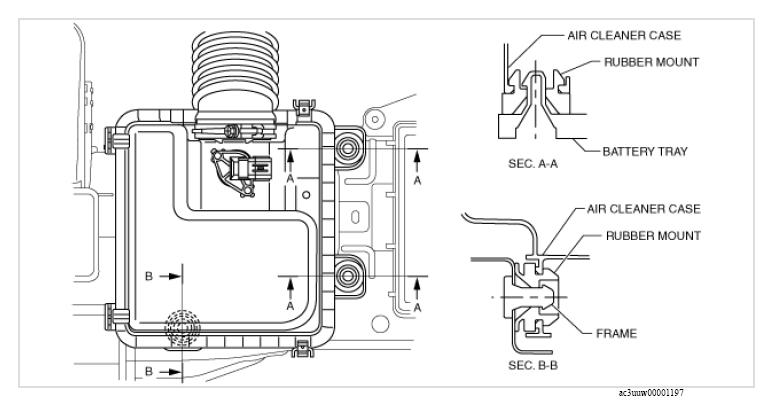

  1. Install the air cleaner case as shown in the figure.
G13149382Courtesy of MAZDA MOTORS CORP.
