Back-up Ring Installation Note

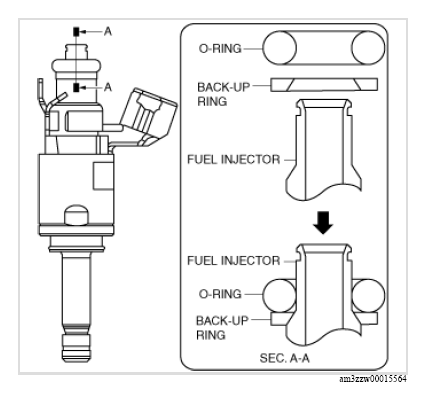

1. Install the back-up ring being, making sure it is installed in the right direction.

   Courtesy of MAZDA MOTORS CORP.

2. After installing the back-up ring, verify that it is installed correctly.

Courtesy of MAZDA MOTORS CORP.
