Water Pump Component Removal Note

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

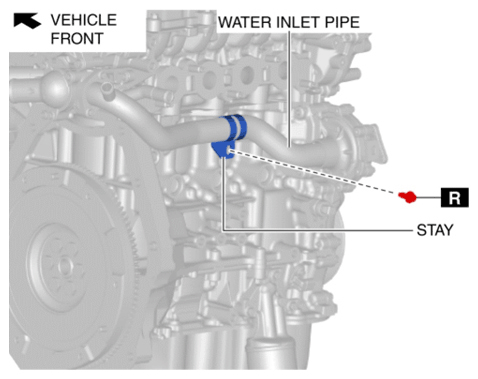

Remove the water inlet pipe stay bolt.

Fig 1: Removing Water Inlet Pipe Stay Bolt
Courtesy of MAZDA MOTORS CORP.
Place a container under the engine to collect the engine coolant remaining in the engine.

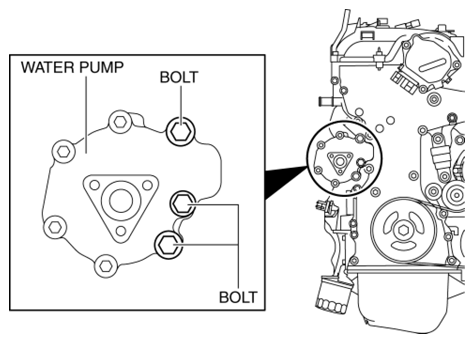

Slightly loosen the three water pump component bolts shown in the figure and collect the draining engine coolant into a container.

Fig 2: Loosening Water Pump Component Bolts
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- Do not remove the water pump component completely at this time because the remaining approx. 2 L {2 US qt, 2 Imp qt} or less of engine coolant flowing in the engine will drain out.
After the engine coolant stops draining, remove the water pump component.
