Accelerator Pedal Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove in the order indicated in the graphic.

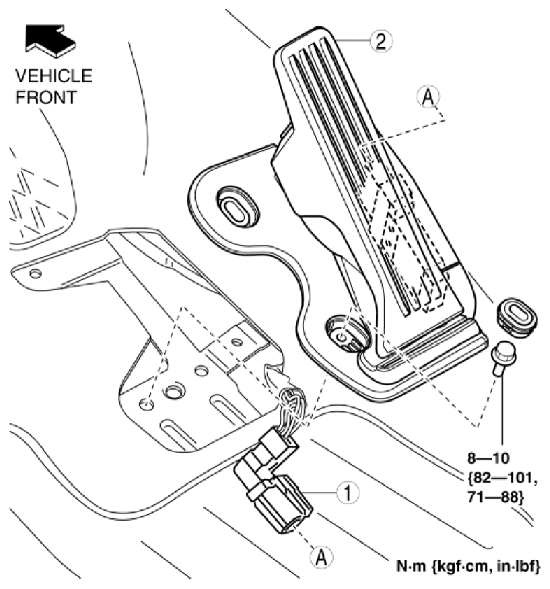

Fig 1: Accelerator Pedal Replacement Components With Torque Specification
Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 APP sensor connector

2 Accelerator pedal
Install in the reverse order of removal.

1	APP sensor connector
2	Accelerator pedal
