Passenger's Side

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)

CAUTION:

If work using protective tape is performed in an area where the temperature can increase drastically or the protective tape is left adhered for a long period of time, tape adhesive could remain area where the protective tape was applied when the it is peeled off. When applying protective tape, avoid areas where the temperature of the tape can increase drastically and peel off the protective tape soon after the work is completed.

To prevent scratches or damage, affix protective tape to the position shown in the figure of the dashboard.

Fig 1: Affixing Protective Tape To Position
Courtesy of MAZDA
Insert a tape-wrapped flathead screwdriver to the service hole shown in the figure and secure a clearance to insert the remover tool.

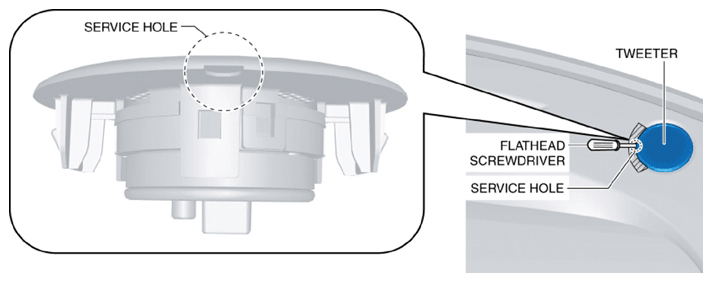

Fig 2: Inserting Tape-Wrapped Flathead Screwdriver To Service Hole
Courtesy of MAZDA
Insert the remover tool into the clearance secured in Step 3.

Fig 3: Inserting Remover Tool Into Clearance
Courtesy of MAZDA
Move the remover tool in the direction of the arrow shown in the figure and detach the tweeter tab from the dashboard.
Disconnect the connector.

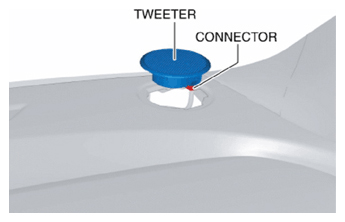

Fig 4: Disconnecting Tweeter Connector
Courtesy of MAZDA
Remove the tweeter.
Install in the reverse order of removal.
