Rear Inner Handle

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Power window subswitch (Refer to POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)
    2. Rear door trim (Refer to REAR DOOR TRIM REMOVAL/INSTALLATION .)
  3. Disconnect the door lock knob cable and the inner handle cable from the rear inner handle.

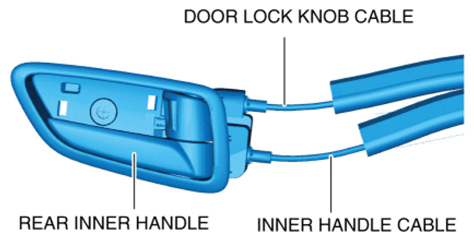

    Fig 1: Disconnecting Door Lock Knob Cable And Inner Handle Cable From Rear Inner Handle
    G10914324Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
