Vehicle interior, rear

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the rear seat cushion (Refer to REAR SEAT CUSHION REMOVAL/INSTALLATION .)
  3. Disconnect the connector from the keyless antenna.

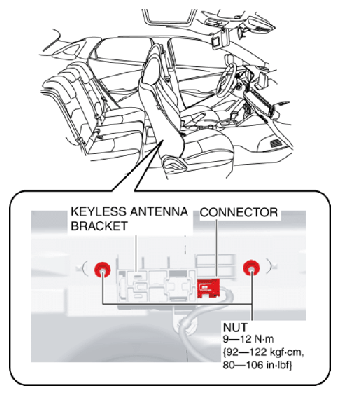

    Fig 1: Disconnecting Connector From Keyless Antenna
    G10914438Courtesy of MAZDA MOTORS CORP.
  4. Remove the nuts from the keyless antenna bracket.
  5. While pressing the clip tab in the directions of arrows (1) shown in the figure, press it in the direction of arrow (2) to detach the clip tab from the keyless antenna bracket.

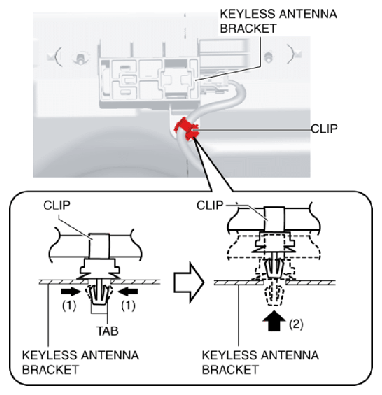

    Fig 2: Detaching Clip Tab From Keyless Antenna Bracket
    G10914439Courtesy of MAZDA MOTORS CORP.
  6. Remove the clip from the keyless antenna bracket.
  7. While pressing the keyless antenna bracket tab in the directions of arrows (1) shown in the figure, pull the keyless antenna in the direction of arrow (2) to detach the keyless antenna bracket tab from the keyless antenna.

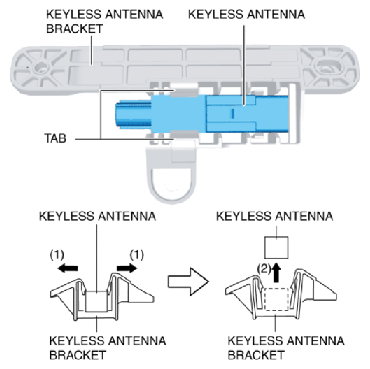

    Fig 3: Detaching Keyless Antenna Bracket Tab From Keyless Antenna
    G10914440Courtesy of MAZDA MOTORS CORP.
  8. Remove the keyless antenna from the keyless antenna bracket.
  9. Install in the reverse order of removal.
