Caliper Installation Bolt Removal Note

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Remove the caliper installation bolt shown in the figure and lift up the caliper.

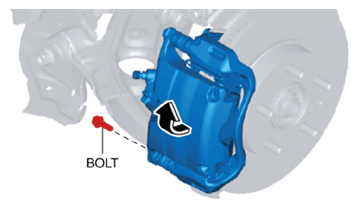

Fig 1: Removing Caliper Installation Bolt
Courtesy of MAZDA MOTORS CORP.
