Blower Motor Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the dashboard under cover. (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
Disconnect the blower motor connector.

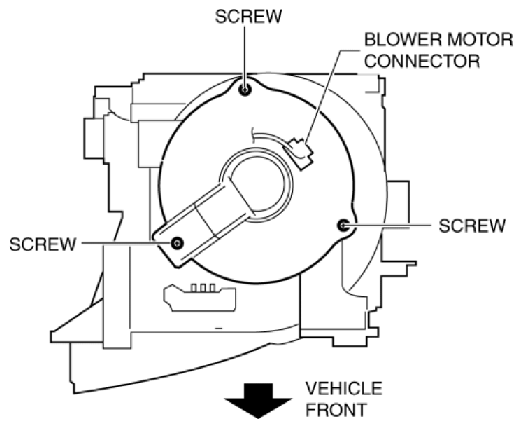

Fig 1: Disconnecting Blower Motor Connector
Courtesy of MAZDA MOTORS CORP.
Remove the screws.
Remove the blower motor.

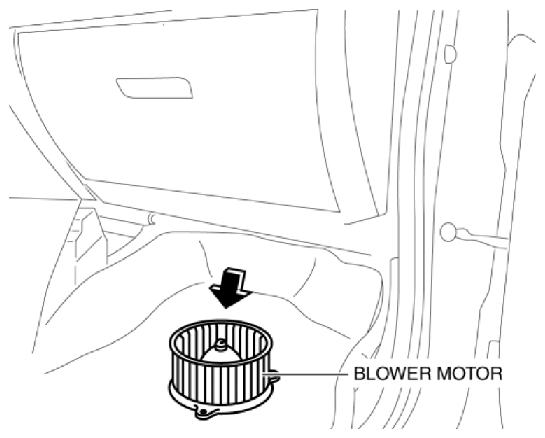

Fig 2: Removing Blower Motor
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
