Brake Pipe Installation Note

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Align the marks made before removal and install the brake pipe to the DSC HU/CM and brake pipe joint referring to the figure.

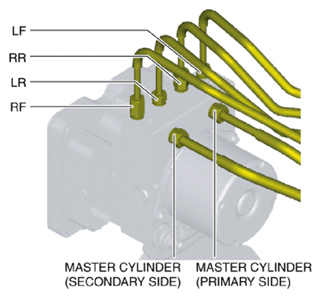

Fig 1: Identifying DSC HU/CM Brake Pipes

Courtesy of MAZDA MOTORS CORP.
