No. 1 Engine Mount (4WD): Notes

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

When removing the No. 1 engine mount bracket B for 4WD vehicles, perform the procedure with the transfer completely removed from the transaxle.

Remove the front under cover No. 2. (Refer to FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.

Install in the reverse order of removal.

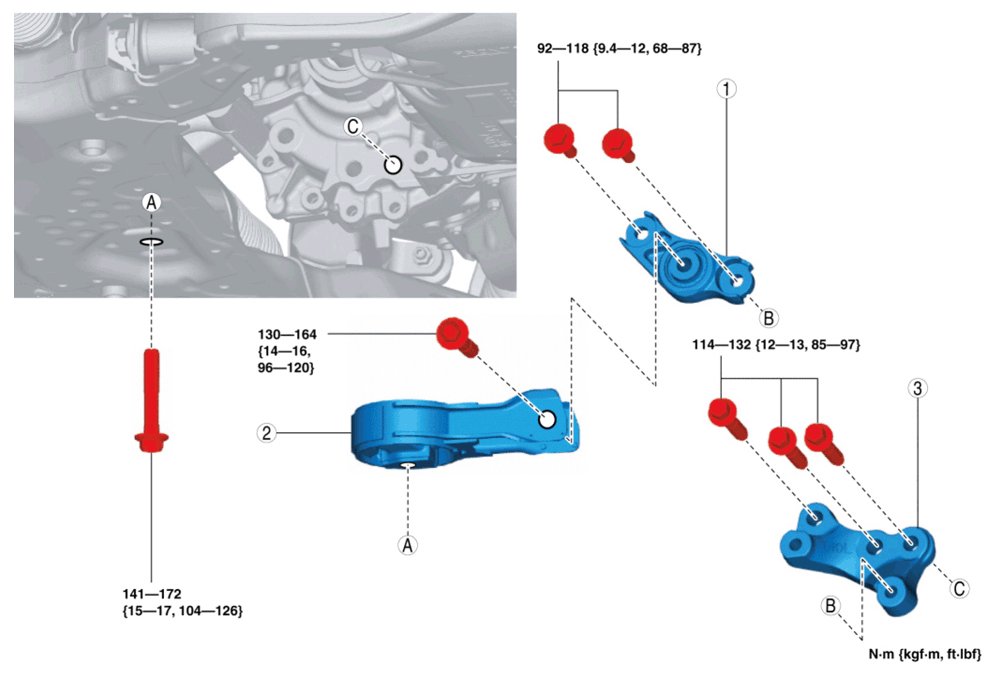

Fig 1: Identifying No. 1 Engine Mount Components With Torque Specification (4WD)

Courtesy of MAZDA

COMPONENT DESCRIPTION

1	No. 1 engine mount bracket A (See No. 1 engine mount removal note (4WD) .) (See No. 1 engine mount installation note (4WD) .)
2	No. 1 engine mount rubber (See No. 1 engine mount removal note (4WD) .) (See No. 1 engine mount installation note (4WD). )
3	No. 1 engine mount bracket B (See No. 1 engine mount removal note (4WD) .) (See No. 1 engine mount installation note (4WD). )
