Rear Differential Removal/Installation: Notes

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Performing the following procedures could cause an open circuit in the rear ABS wheel-speed sensor wiring harness if it is pulled by mistake. Before servicing, disconnect the rear ABS wheel-speed sensor and set it aside so that the wiring harness will not be pulled by mistake.
  • If the characteristic value of a new coupling component is not input to the AWD control module or the characteristic value is input incorrectly after replacing the coupling component, it could result in the following conditions:
    • The system does not operate normally.
    • A problem with durability of the coupling component occurs.
      • After replacing the coupling component, read out the characteristic value of a new coupling component and write it to the AWD control module. (Refer to COUPLING COMPONENT CALIBRATION DATA WRITING .)
      • Read out the characteristic value of the coupling component from the label or mark shown in the graphic.
Fig 1: Coupling Component Label And Mark
G10909516Courtesy of MAZDA MOTORS CORP.
NOTE:
  • The AWD control module stores the characteristic value of the coupling component before replacement.
  • If the characteristic value of a new coupling component is not written, the AWD control module does not store the value.
  1. Drain the differential oil from the rear differential. (Refer to Differential Oil Replacement .)
  2. Remove the TWC. (Refer to EXHAUST SYSTEM REMOVAL/INSTALLATION .)
  3. Disconnect the propeller shaft from the rear differential. (Refer to PROPELLER SHAFT REMOVAL/INSTALLATION .)
  4. Suspend the propeller shaft using a cable as shown in the graphic.

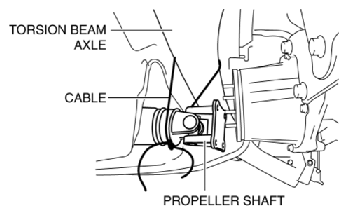

    Fig 2: Suspending Propeller Shaft On Torsion Beam Axle Using Cable
    G10909517Courtesy of MAZDA MOTORS CORP.
  5. Lightly tap the step of the rear drive shaft using a brass bar and hammer, then detach the rear differential from the rear drive shaft.

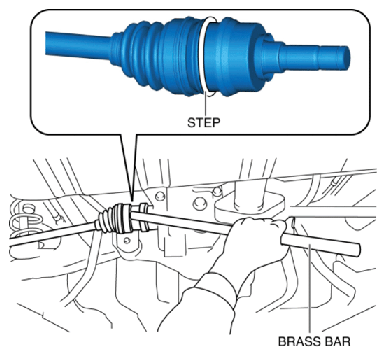

    Fig 3: Tapping Rear Drive Shaft Step Using Brass Bar
    G10909518Courtesy of MAZDA MOTORS CORP.
  6. Disconnect the connector and wiring harness clip.

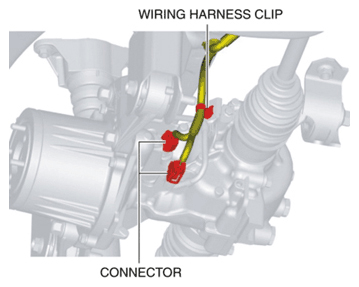

    Fig 4: Wiring Harness Clip And Connector
    G10909519Courtesy of MAZDA MOTORS CORP.
  7. Disconnect the hose.

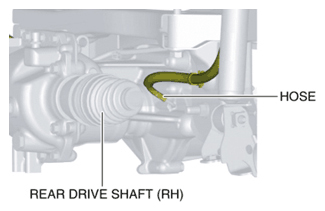

    Fig 5: Rear Drive Shaft Hose(RH)
    G10909520Courtesy of MAZDA MOTORS CORP.
  8. Remove in the order shown in the graphic.
  9. Install in the reverse order of removal.
  10. Add the recommended differential oil to the rear differential. (Refer to Differential Oil Replacement .)

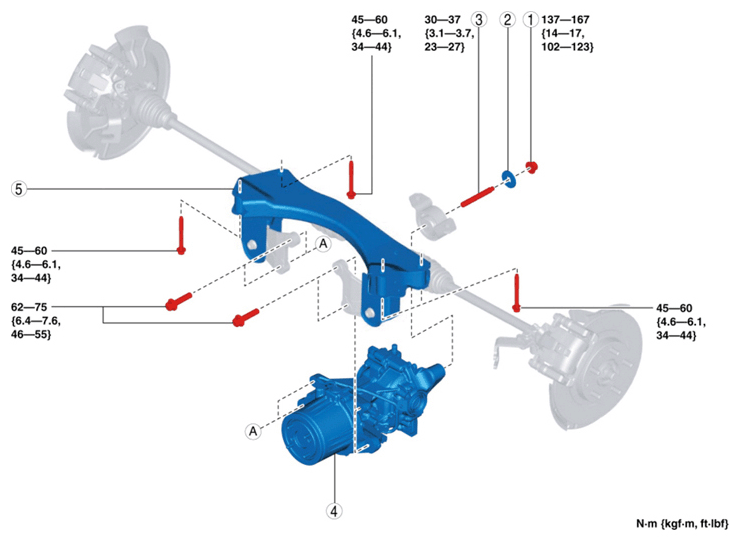

Fig 6: Rear Differential Replacement Components With Torque Specifications (1 Of 2)
G10909521Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Nut
2 Washer
3 Stud bolt
4 Rear differential component
(See Rear Differential Component Removal Note .)
(See Rear Differential Component Installation Note .)
5 Rear differential member
(See Rear Differential Member Removal Note .)
(See Rear Differential Member Installation Note .)

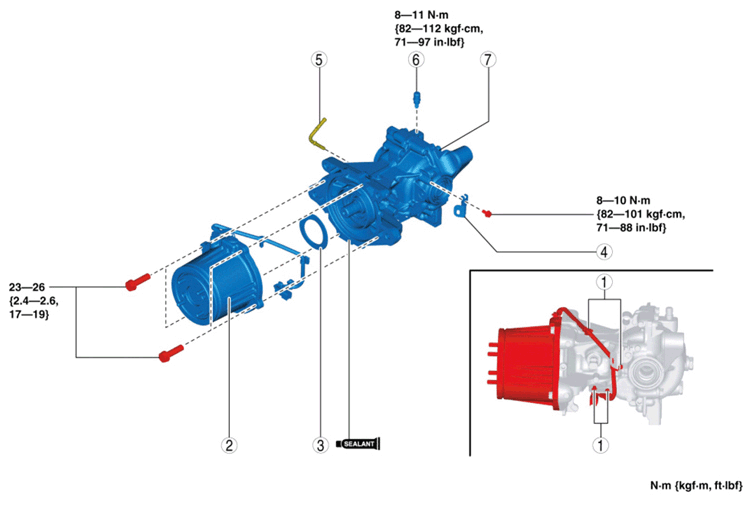

Fig 7: Rear Differential Replacement Components With Torque Specifications (2 Of 2)
G10909522Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 AWD solenoid wiring harness clip
2 Coupling component
(See Coupling Component Removal Note .)
(See Coupling Component Installation Note .)
3 Washer
4 Bracket
5 Pipe
6 Breather
7 Rear differential
