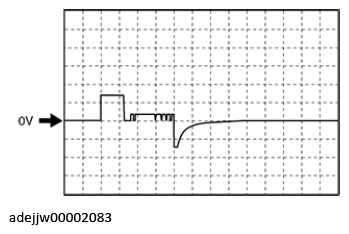

Fuel injection control (+) signal

Courtesy of MAZDA MOTORS CORP.

PCM terminals

• Fuel Injection No. 1: 1DG(+)-body ground(-)
• Fuel Injection No. 2: 1CY(+)-body ground(-)
• Fuel Injection No. 3: 1CU(+)-body ground(-)
• Fuel Injection No. 4: 1DC(+)-body ground(-)

Oscilloscope setting

• 50 V/DIV (Y), 5 ms/DIV (X), DC range

Vehicle condition

• Idle after warm up
