Rear Outer Handle Removal/Installation: Notes

  1. Fully close the rear door glass.
  2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  3. Remove the following parts:
    1. Power window subswitch (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)
    2. Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
    3. Rear inner handle (See INNER HANDLE REMOVAL/INSTALLATION .)

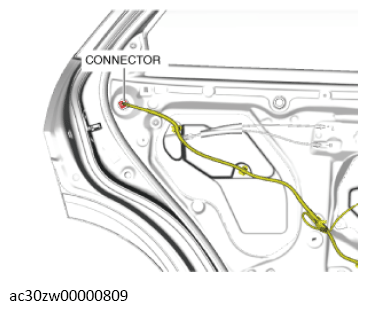

  4. Disconnect the connector.
    G13560428
    CAUTION:
    • When removing the service hole cover, insert the remover tool so as not to damage the seal rubber.

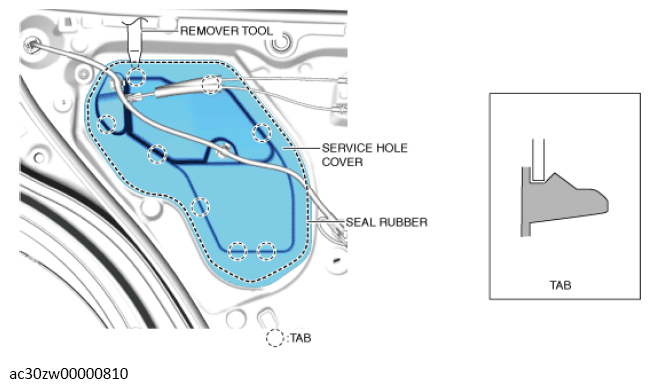

  5. Detach the service hole cover tabs from the body using a remover tool.
    G13560429

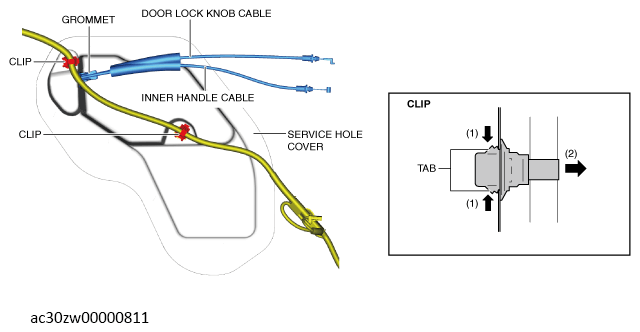

  6. Remove the clips.
    G13560430
  7. Remove the grommet.
  8. Pull the door lock knob cable and the inner handle cable from the service hole cover.
  9. Remove the service hole cover. (See SERVICE HOLE COVER INSTALLATION NOTE .)

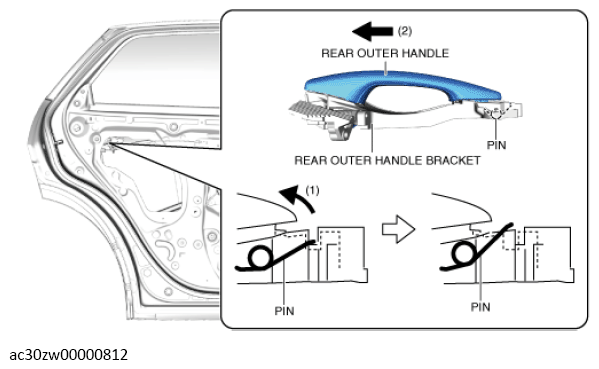

  10. While pressing the rear outer handle bracket pin in the direction of arrow (1) shown in the figure, pull the rear outer handle in the direction of arrow (2) and detach the rear outer handle bracket pin from the rear outer handle.
    G13560431

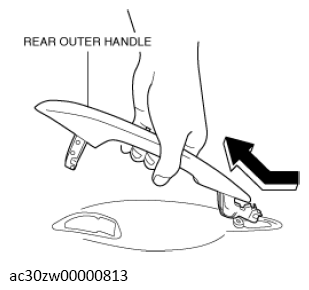

  11. Remove the rear outer handle in the direction of the arrow shown in the figure. (See REAR OUTER HANDLE INSTALLATION NOTE .)
    G13560432

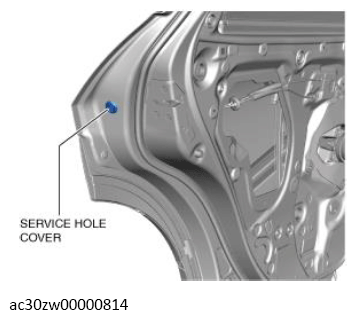

  12. Remove the service hole cover.
    G13560433

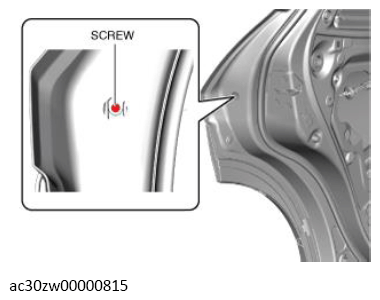

  13. Loosen the screw.
    G13560434

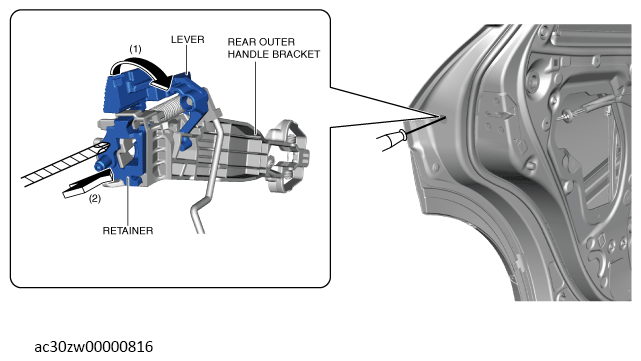

  14. While moving the lever in the direction of arrow (1) shown in the figure, press the retainer in the direction of arrow (2) using a tape-wrapped screwdriver, and then secure the lever.
    G13560435

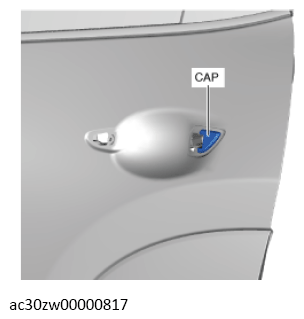

  15. Remove the cap. (See CAP INSTALLATION NOTE .)
    G13560436

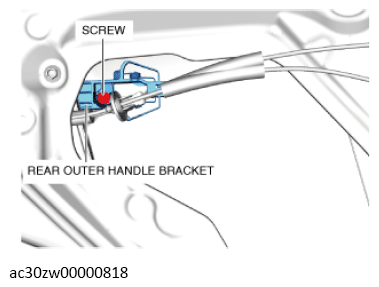

  16. Loosen the screw securing the rear outer handle bracket.
    G13560437
    NOTE:
    • The screw cannot be removed because the rear outer handle bracket has a stopper which prevents the screw from falling.

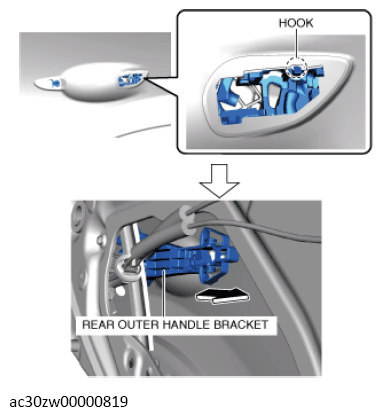

  17. Pull the rear outer handle bracket in the direction of the arrow shown in the figure and detach the rear outer handle bracket hook from the body.
    G13560438

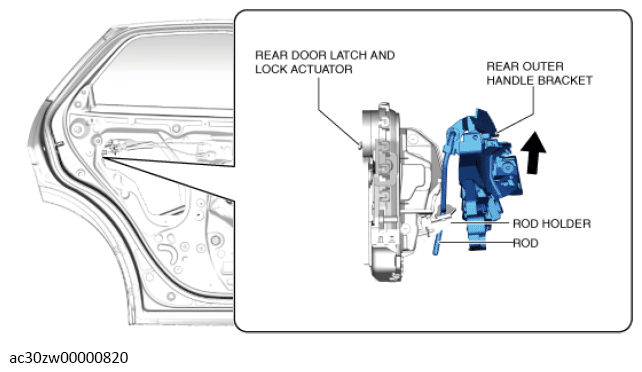

  18. Lift the rear outer handle bracket in the direction of the arrow shown in the figure and pull out the rod from the rod holder. (See REAR OUTER HANDLE BRACKET INSTALLATION NOTE .)
    G13560439
  19. Remove the rear outer handle bracket.

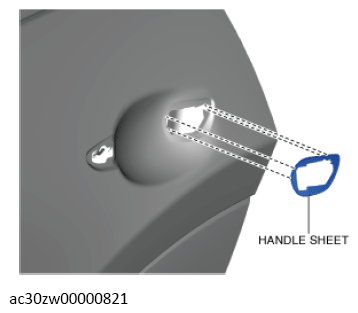

  20. Remove the handle sheet from the body.
    G13560440
  21. Install in the reverse order of removal.
