ECT Sensor No. 2: Specification

RESISTANCE SPECIFICATION

Engine coolant temperature (°C {°F}) Resistance (Kilohms)
20{68} Approx. 2.45
80{176} Approx. 0.318

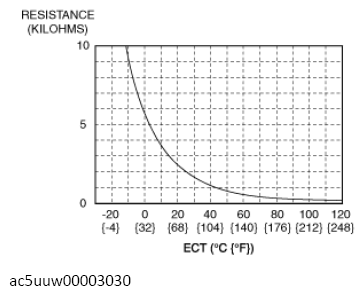

G13732717Courtesy of MAZDA MOTORS CORP.
