PCM Bracket Installation Note

  1. Install the PCM to the PCM bracket.
  2. Install the PCM bracket using the following procedure:

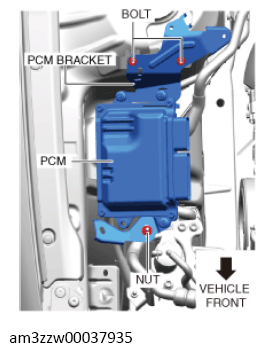

    G13732786Courtesy of MAZDA MOTORS CORP.
    1. Tighten the bolts.
    2. Tighten the nut.
