Lower Column Cover

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
Remove the following parts:
1. Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
2. Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
3. Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
4. Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
5. Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION (US) .)
6. Upper column cover (See UPPER COLUMN COVER .)

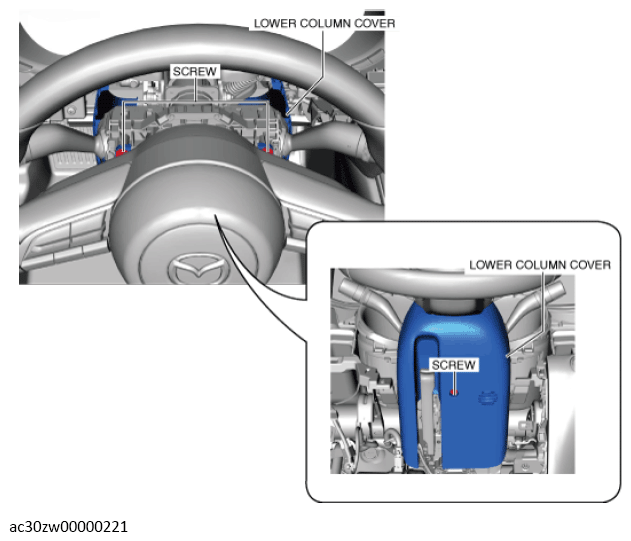

Remove the screws.

Courtesy of MAZDA MOTORS CORP.

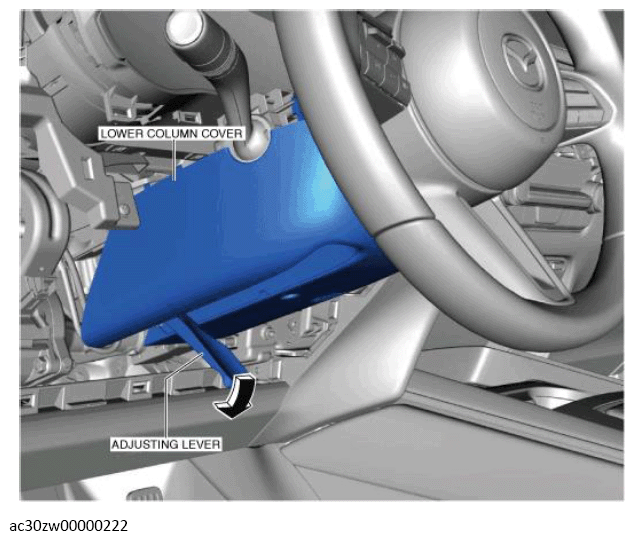

Lower the adjusting lever to the bottommost position.

Courtesy of MAZDA MOTORS CORP.

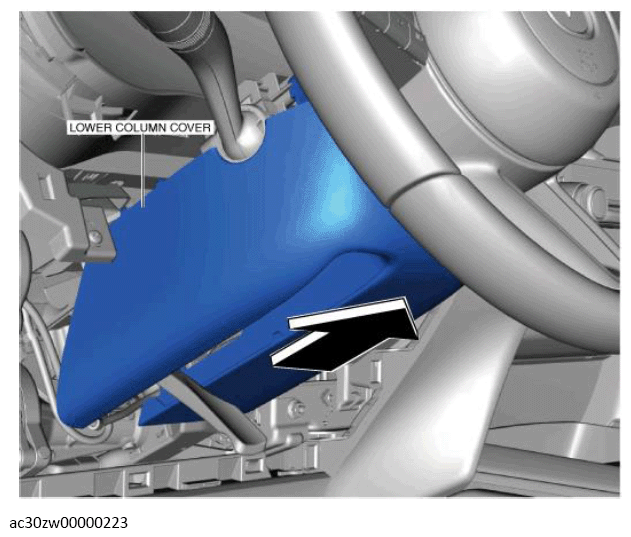

Remove the lower column cover in the direction of the arrow shown in the illustration.

Courtesy of MAZDA MOTORS CORP.
Disconnect the notification and warning speaker connector. (with notification and warning speaker)
Install in the reverse order of removal.
NOTE:
- When replacing the lower column cover, remove the notification and warning speaker (front). (with notification and warning speaker) (See NOTIFICATION AND WARNING SPEAKER REMOVAL/INSTALLATION .)
