Bolt Installation Note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

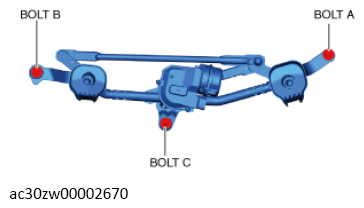

  1. Temporarily tighten bolt A.
    G13561008Courtesy of MAZDA MOTORS CORP.
  2. Completely tighten bolt B.
  3. Completely tighten bolt A.
  4. Completely tighten bolt C.
