Sunroof Unit Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the table.

Courtesy of MAZDA MOTORS CORP.

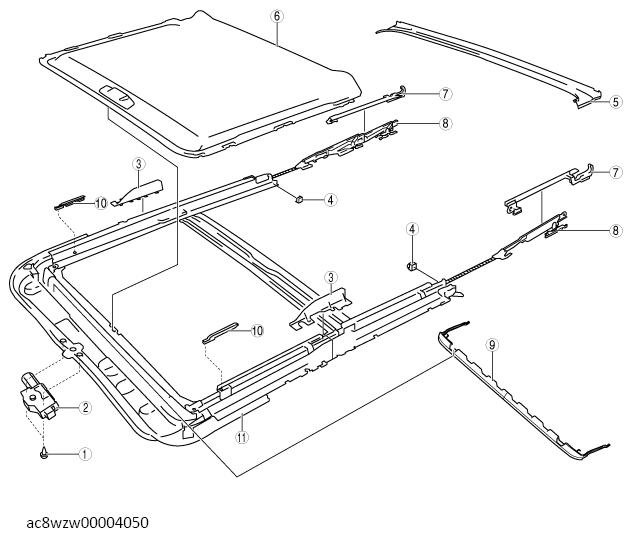

COMPONENT DESCRIPTION

1	Si rew
2	Sunroof motor
3	Screen
4	Rear stopper
5	Drip rail
6	Sunshade (See SUNSHADE DISASSEMBLY NOTE .)
7	Decoration link (See DECORATION LINK ASSEMBLY NOTE .)
8	Front guide (See FRONT GUIDE DISASSEMBLY NOTE .)
9	Deflector
10	Set plate
11	Sunroof frame

Assemble in the reverse order of disassembly.
