Center Display Removal/Installation

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
Remove the center speaker grille. (See SPEAKER GRILLE REMOVAL/INSTALLATION .)

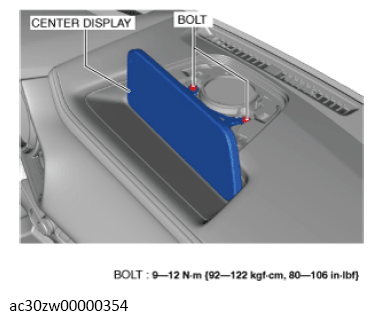

Remove the bolts.

Fig 1: Center Display And Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.

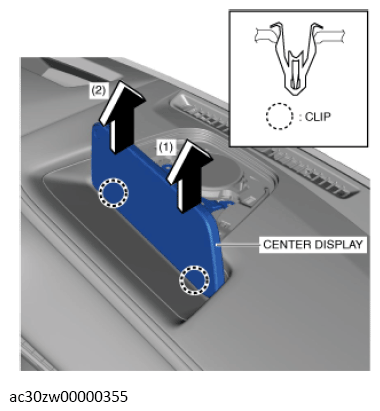

Pull the center display in the order of arrows (1) and (2) shown in the illustration, and remove it while detaching the clips.

Courtesy of MAZDA MOTORS CORP.

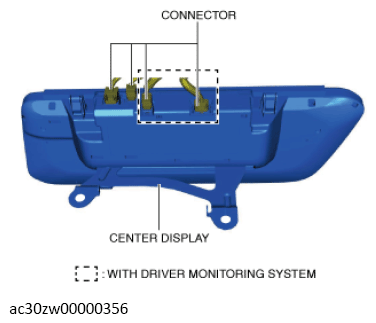

Disconnect the connectors.

Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
