Intake Manifold Installation Note

WARNING: This page is about a different variant/trim than selected.

Install the intake manifold.

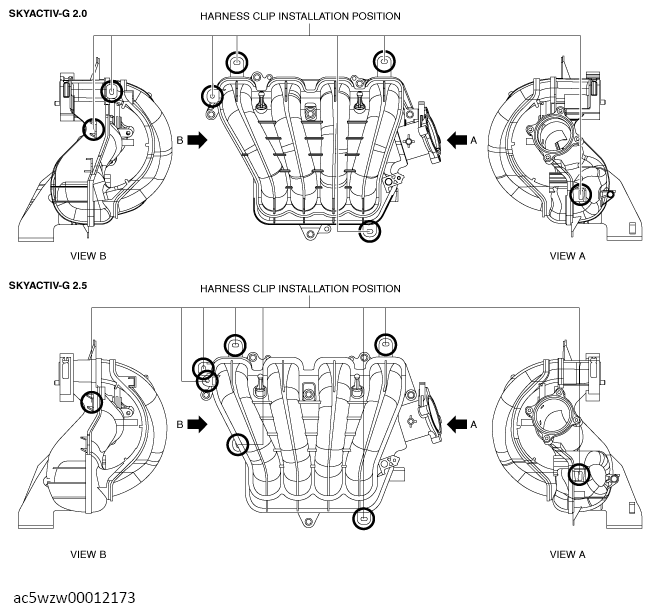

Connect the harness clip to the intake manifold as shown in the figure.

Courtesy of MAZDA MOTORS CORP.
