Intake Manifold Removal Note

WARNING: This page is about a different variant/trim than selected.

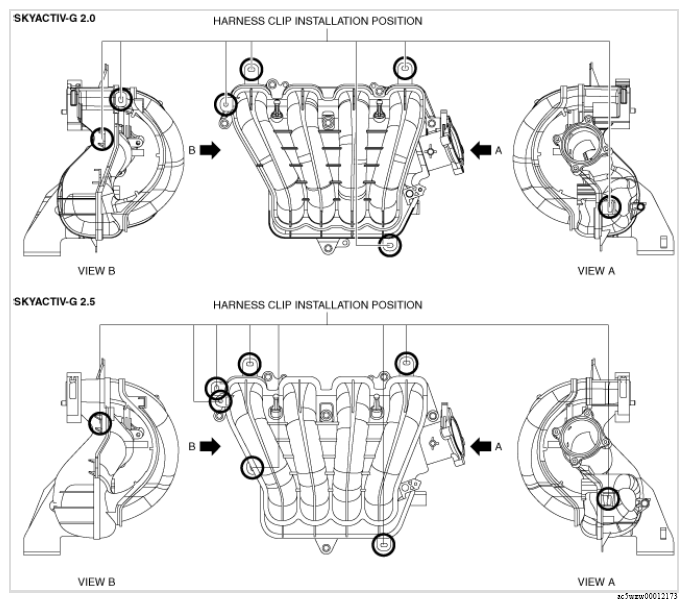

Disconnect the harness clip from the intake manifold as shown in the figure.

Courtesy of MAZDA MOTORS CORP.
Remove the intake manifold.
