Audio Amplifier Removal/Installation

Slide the passenger-side front seat rearward.
Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)

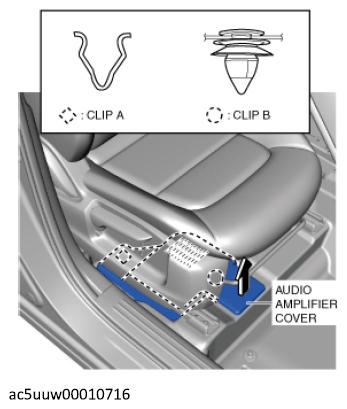

Move the audio amplifier cover in the direction of the arrow shown in the figure, and remove it while detaching clips A and B.

Courtesy of MAZDA MOTORS CORP.
Remove the bolts.

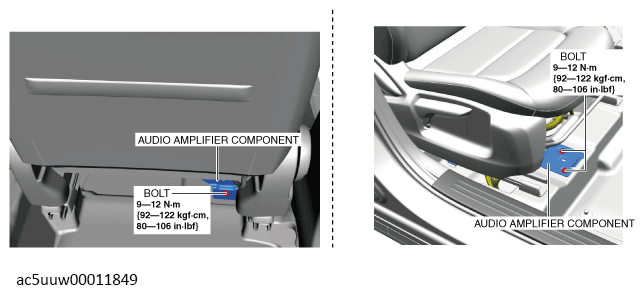

Fig 1: Audio Amplifier Component Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.

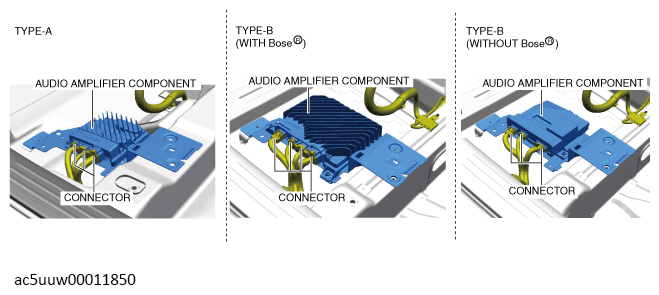

Disconnect the connectors.

Courtesy of MAZDA MOTORS CORP.
Remove the audio amplifier component.
Remove the nuts.

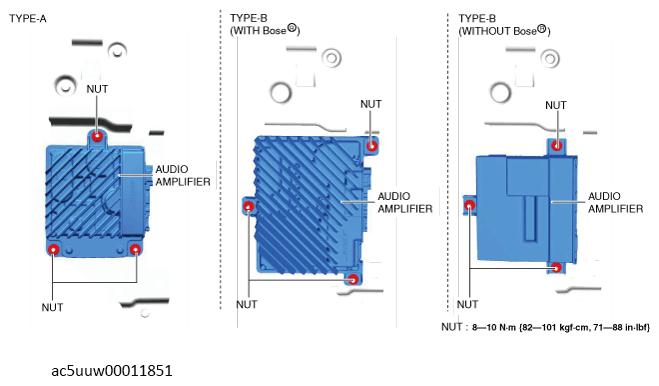

Fig 2: Audio Amplifier Nuts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the audio amplifier.
Install in the reverse order of removal.
