AudioPilot® MICROPHONE REMOVAL/INSTALLATION

NOTE:

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Disconnect the connector.

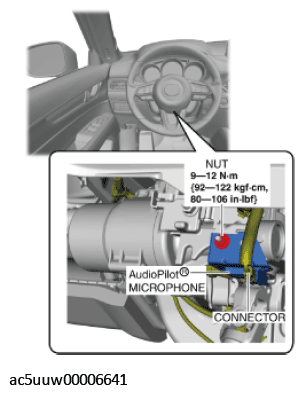

Fig 1: AudioPilot® Microphone Nut With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the nut.
Remove the AudioPilot® microphone.
Install in the reverse order of removal.
