Dashboard Removal/Installation: Installation

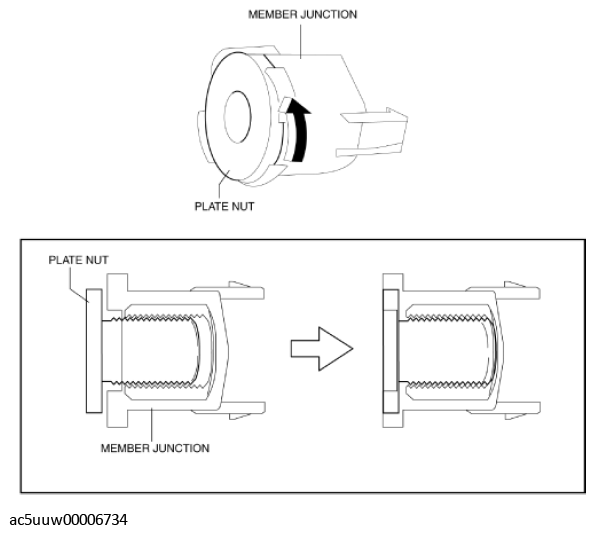

  1. Rotate the plate nuts by hand in the direction of the arrow shown in the figure until they are seated.
    CAUTION:
    • After removing the dashboard, the plate nuts of the member junctions will have loosened. If the dashboard is installed with the plate nuts loosened, the plate nuts may contact the vehicle body, causing a dent or damage to the coating film, and the dashboard installation will be difficult. Before inserting the dashboard into the cabin, seat the plate nuts of the member junctions.
    • If the plate nuts are tightened excessively, the plate nuts may not move when installing the bolts, resulting in damage to the member junction tab and the vehicle body. After seating the plate nuts, verify that they can be rotated by hand.
    NOTE:
    • If the plate nuts cannot be rotated by hand, loosen the plate nuts using a hexagonal wrench.
    G11427872Courtesy of MAZDA MOTORS CORP.

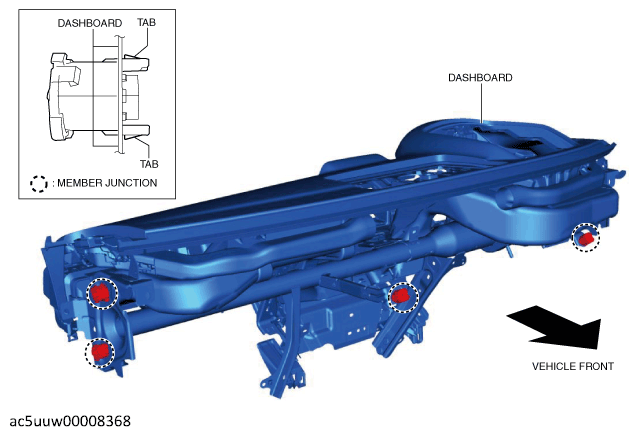

  2. Verify that the member junction tabs are engaged to the dashboard.
    CAUTION:
    • If the member junction tabs are disengaged from the dashboard when inserting the dashboard into the cabin, the vehicle body could be damaged. Before inserting the dashboard into the cabin, verify that the member junction tabs are engaged with the dashboard.
    G12187669Courtesy of MAZDA MOTORS CORP.
  3. Insert the dashboard from either the driver-side or passenger-side front door opening.

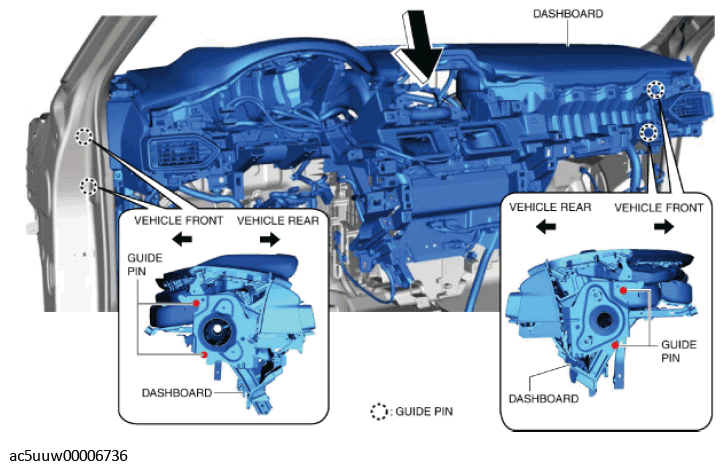

  4. Move the dashboard in the direction of the arrow shown in the figure, align it with the guide pins on the vehicle body sides, and set it.
    NOTE:
    • Visually verify the installation condition of the guide pins on the vehicle body sides and the dashboard from the position shown in the figure.
    G11427874Courtesy of MAZDA MOTORS CORP.

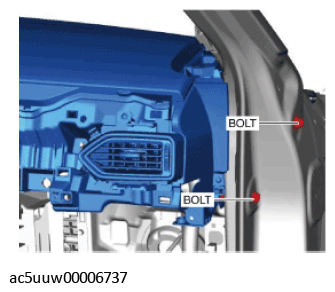

  5. Insert the bolts on the passenger-side.
    NOTE:
    • Tighten the bolts to the specified torque after positioning the member junction.
    G11427875Courtesy of MAZDA MOTORS CORP.

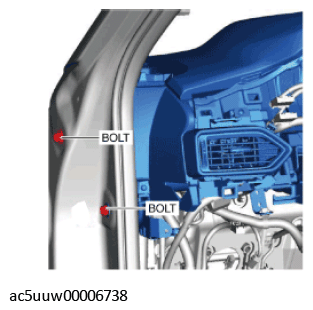

  6. Tighten the bolts on the driver-side temporarily.
    G11427876Courtesy of MAZDA MOTORS CORP.

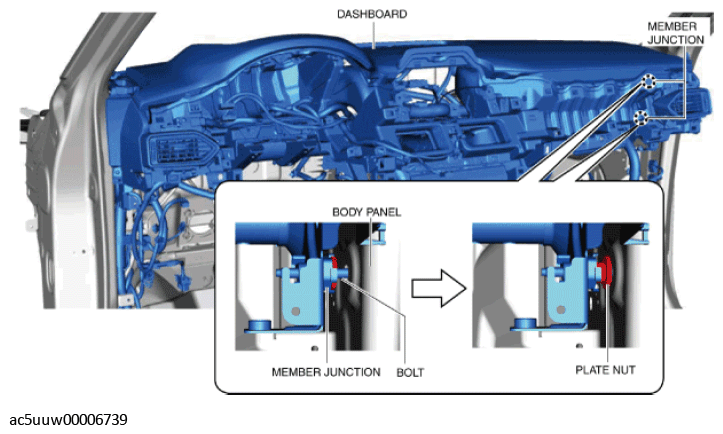

  7. Tighten the bolts on the passenger-side temporarily.
    NOTE:
    • When seating the bolts, visually verify from the lower side of the dashboard that the plate nuts of the member junctions emerge toward the body panel while rotating.
    G11427877Courtesy of MAZDA MOTORS CORP.

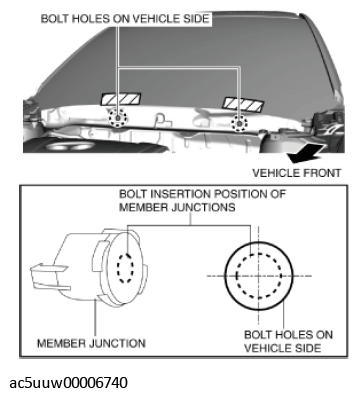

  8. Verify that the bolt holes on the vehicle side and the bolt insertion position of the member junctions are aligned.
    NOTE:
    • If the bolt holes on the vehicle side and the bolt insertion position of the member junctions are not aligned, remove the bolts on the driver-side and passenger-side and repeat from Step 5.
    G11427878Courtesy of MAZDA MOTORS CORP.

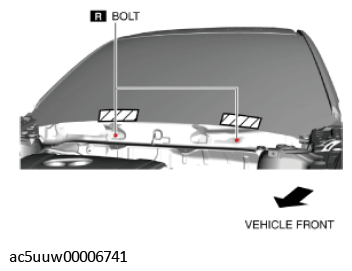

  9. Tighten the new bolts temporarily.
    CAUTION:
    • If the bolts are reused, the plate nuts of the member junctions cannot be moved and the dashboard frame and the vehicle body could be damaged. Always replace the bolts with new ones.
    G11427879Courtesy of MAZDA MOTORS CORP.

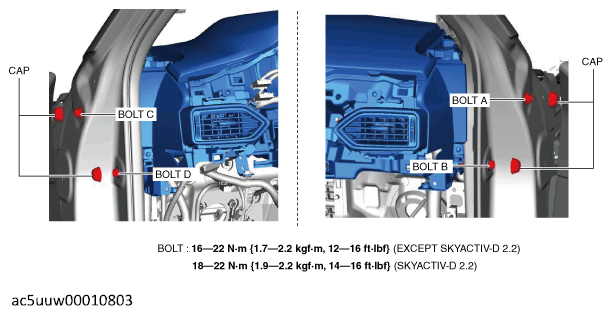

  10. Tighten bolts A and B to the specified torque and install the caps.
    Fig 1: Dashboard Frame Bolts With Torque Specification
    G12187676Courtesy of MAZDA MOTORS CORP.
  11. Tighten bolts C and D to the specified torque and install the caps.

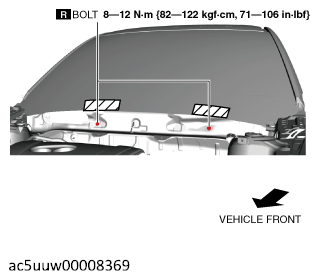

  12. Tighten the bolts to the specified torque.
    Fig 2: Dashboard Bolts With Torque Specification
    G12187677Courtesy of MAZDA MOTORS CORP.

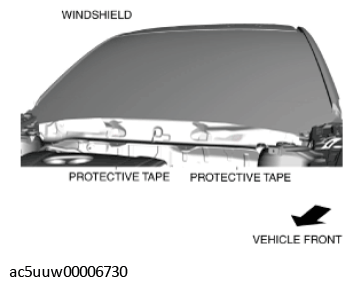

  13. Peel off the protective tape.
    G11427867Courtesy of MAZDA MOTORS CORP.

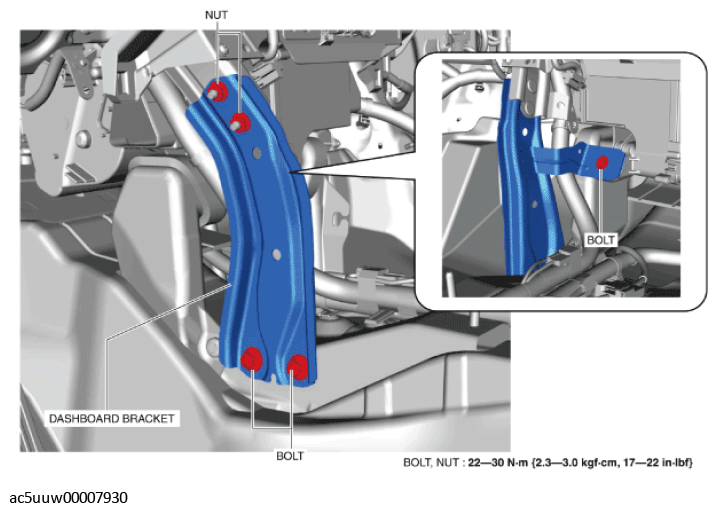

  14. Install the dashboard bracket.
    Fig 3: Dashboard Bracket Bolts And Nuts With Torque Specification
    G11427883Courtesy of MAZDA MOTORS CORP.
  15. Install the nuts.
  16. Install the bolts.

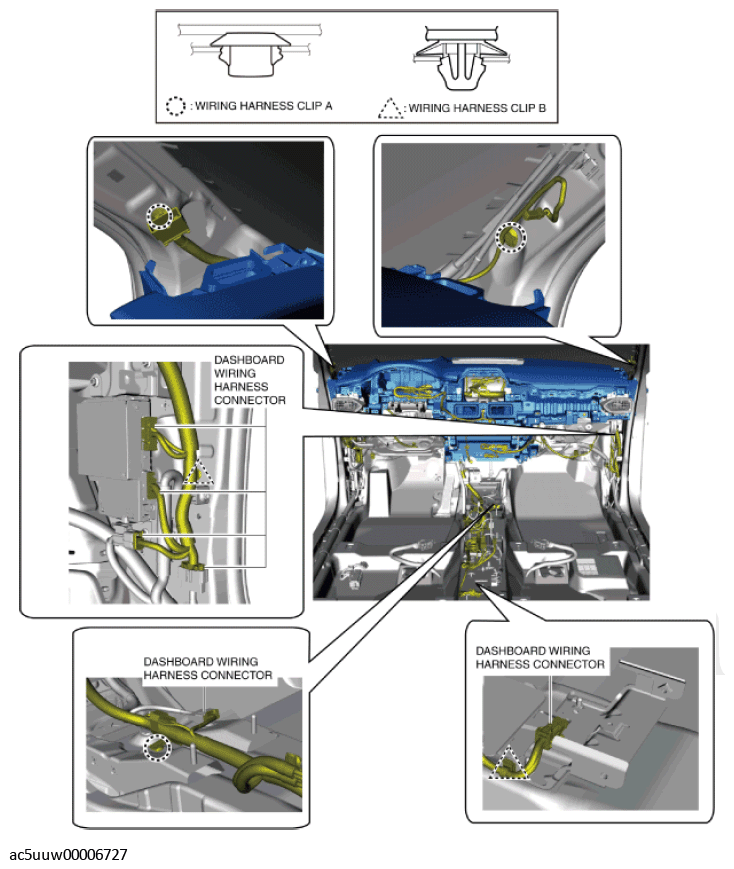

  17. Connect the dashboard wiring harness connectors and install wiring harness clips A and B.
    G11427864Courtesy of MAZDA MOTORS CORP.
  18. Install the electric parking brake control module bracket. (See ELECTRIC PARKING BRAKE CONTROL MODULE REMOVAL/INSTALLATION .)
  19. Install the electric parking brake control module. (See ELECTRIC PARKING BRAKE CONTROL MODULE REMOVAL/INSTALLATION .)

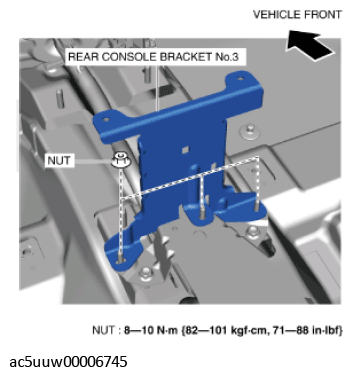

  20. Install rear console bracket No. 3.
    Fig 4: Rear Console Bracket No. 3 Nuts With Torque Specification
    G11427886Courtesy of MAZDA MOTORS CORP.
  21. Install the nuts.

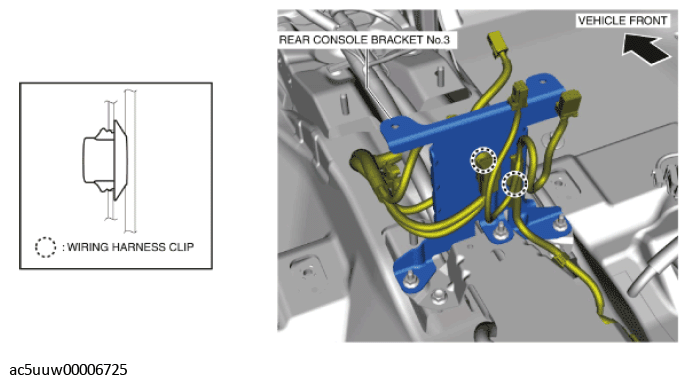

  22. Install the wiring harness clips.
    G11427862Courtesy of MAZDA MOTORS CORP.
  23. Install the following parts:
    1. Selector lever component (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
    2. Rear vent duct No. 1 (With rear vent duct) (See REAR VENT DUCT REMOVAL/INSTALLATION .)
    3. Rear vent duct No. 2 (With rear vent duct) (See REAR VENT DUCT REMOVAL/INSTALLATION .)
    4. Steering wheel and column component (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
    5. Light switch (See LIGHT SWITCH REMOVAL/INSTALLATION .)
    6. Wiper and washer switch (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION .)
    7. Clock spring (See CLOCK SPRING REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .)
    8. Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
    9. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
    10. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    11. Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER] .) (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER] .)
    12. Indicator unit (See INDICATOR UNIT REMOVAL/INSTALLATION .)
    13. Center lower panel (See CENTER LOWER PANEL REMOVAL/INSTALLATION .)
    14. Knee bolster (With knee bolster) (See KNEE BOLSTER REMOVAL/INSTALLATION .)
    15. Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
    16. Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION .)
    17. Hood release lever (See HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION .)
    18. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
    19. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    20. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
    21. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    22. Selector lever knob (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
    23. Cup holder (See CUP HOLDER REMOVAL/INSTALLATION .)
    24. Switch panel (See SWITCH PANEL REMOVAL/INSTALLATION .)
    25. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
    26. Active driving display (With active driving display) (See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION .)
    27. Meter hood No. 2 (With active driving display) (See METER HOOD REMOVAL/INSTALLATION .)
    28. Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)
    29. Center display component (See CENTER DISPLAY REMOVAL/INSTALLATION .)
    30. Meter hood No. 1 (See METER HOOD REMOVAL/INSTALLATION .)
    31. Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    32. Upper decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    33. Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    34. Lower column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
    35. Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
    36. Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
    37. Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .)
    38. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
    39. Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    40. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    41. Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION .)
    42. Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
  24. Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
