Foot Support Removal/Installation

  1. Remove the following parts:
    1. Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
  2. Partially peel back the floor covering.
  3. Remove the fastener.

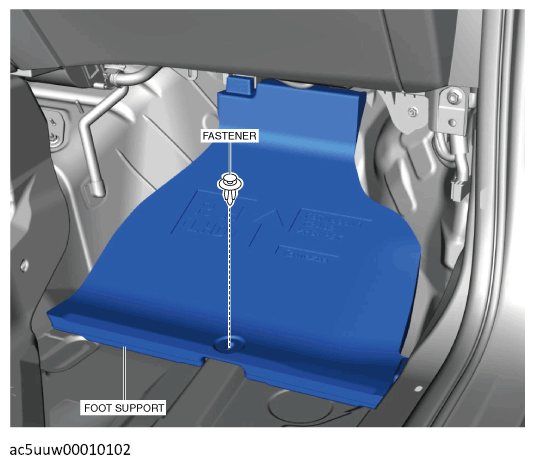

    Without 360° View monitor control module

    G12187708Courtesy of MAZDA MOTORS CORP.

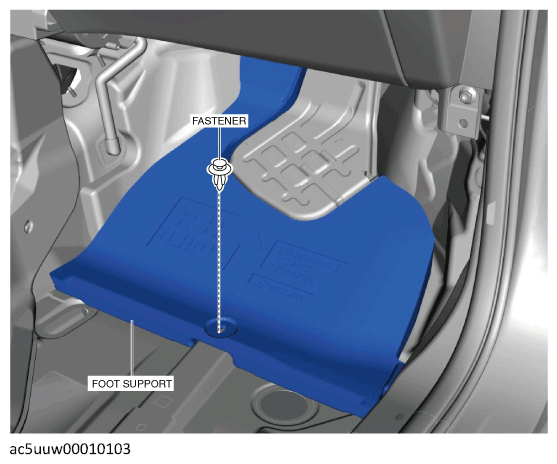

    With 360° View monitor control module

    G12187709Courtesy of MAZDA MOTORS CORP.
  4. Remove the foot support in the direction of the arrow shown in the figure.

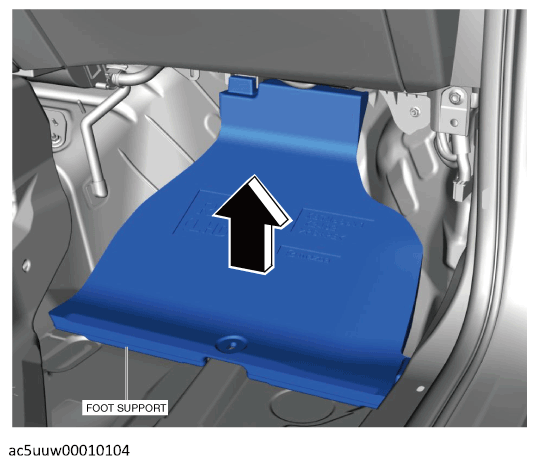

    Without 360° View monitor control module

    G12187710Courtesy of MAZDA MOTORS CORP.

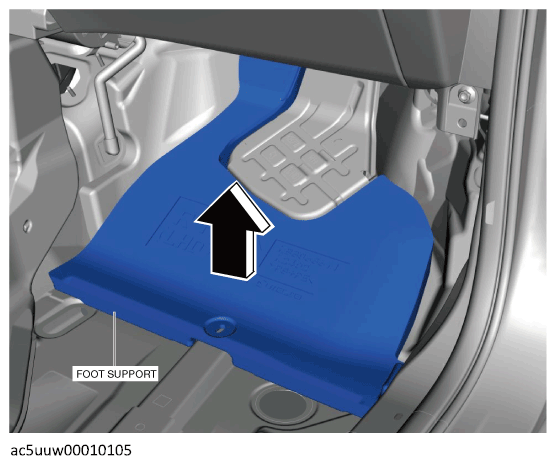

    With 360° View monitor control module

    G12187711Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
