Headliner Removal/Installation: Notes

Preparation Before Servicing

CAUTION:

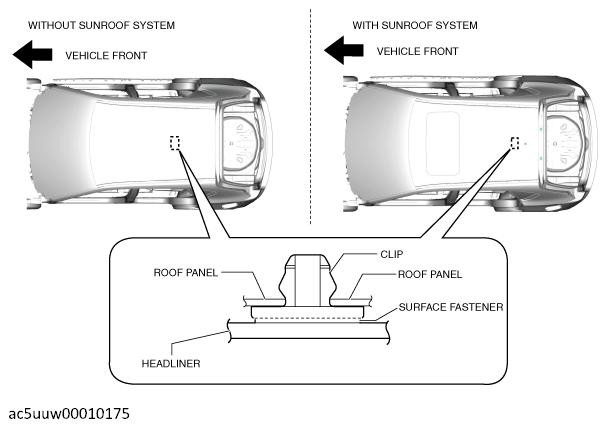

The location of the headliner shown in the figure is installed to the roof panel using a clip via the surface fastener. If the surface fastener is peeled off or a clip is removed forcibly when removing the headliner, the headliner will be damaged. Disconnect the surface fastener using a string before removing the headliner.

G12187732

Courtesy of MAZDA MOTORS CORP.

Form the steel wire (approx. 3 mm {0.1 in}) into the shape shown in the figure and tie a string (approx. 3 mm {0.1 in}) to the steel wire end.

Courtesy of MAZDA MOTORS CORP.
To prevent the steel wire from getting caught on the headliner, wrap the position shown in the figure with protective tape.
