Side Panel Removal Note

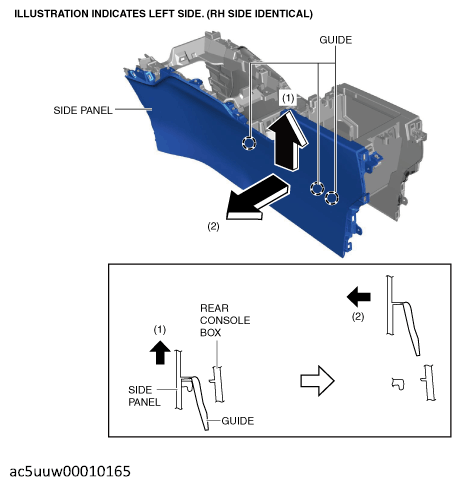

  1. Move the side panel in the order of arrows (1) and (2) shown in the figure, and remove it while detaching the guides.
G12187797Courtesy of MAZDA MOTORS CORP.
