Sub-Trunk Removal/Installation
- Disconnect the negative battery terminal. (With Bose®) (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the trunk board. (See TRUNK BOARD REMOVAL/INSTALLATION .)
- Remove the bass-box. (With Bose®) (See BASS-BOX REMOVAL/INSTALLATION .)

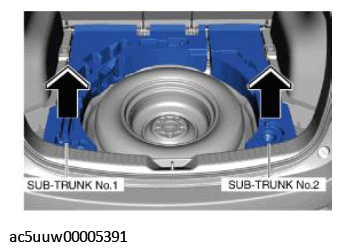

- Remove sub-trunks No. 1 and No. 2 in the direction of the arrows shown in the figure.
- Install in the reverse order of removal.
