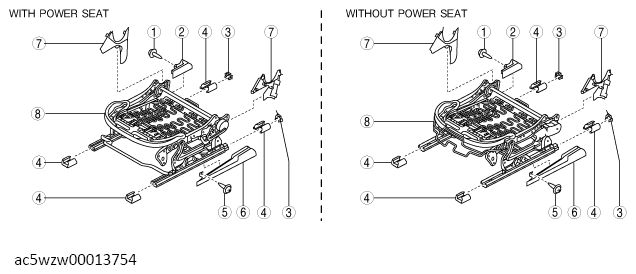

Front Seat Cushion Frame/Adjuster Unit Disassembly/Assembly
- Disassemble in the order indicated in the table.
PARTS DESCRIPTION
| 1 |
Screw |
| 2 |
Lower cover |
| 3 |
Protector |
| 4 |
Rail cover |
| 5 |
Screw |
| 6 |
Cushion frame cover |
| 7 |
Reverse cover |
| 8 |
Adjuster unit |
- Assemble in the reverse order of disassembly.
