Front Ultrasonic Sensor Short-Cord Inspection

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the seal board upper. (See SEAL BOARD UPPER REMOVAL/INSTALLATION .)
Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
Remove the front ultrasonic sensor short-cord. (See FRONT ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION .)

Courtesy of MAZDA MOTORS CORP.

Courtesy of MAZDA MOTORS CORP.

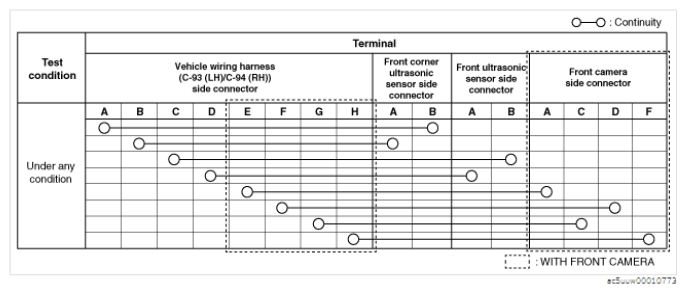

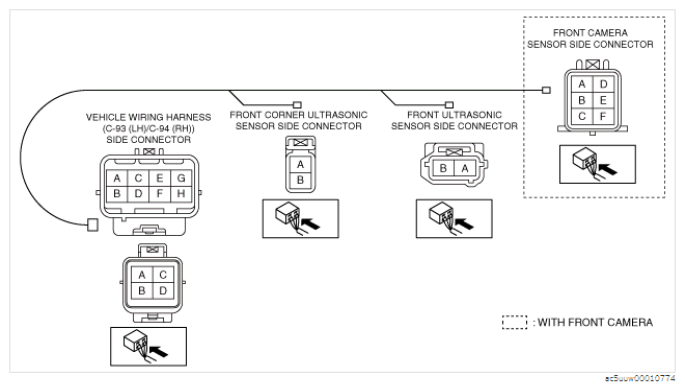

Verify that the continuity between the front ultrasonic sensor short-cord terminals is as indicated in the table.
- If not as indicated in the table, replace the front ultrasonic sensor short-cord. (See FRONT ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION .)
