Engine rear side

WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

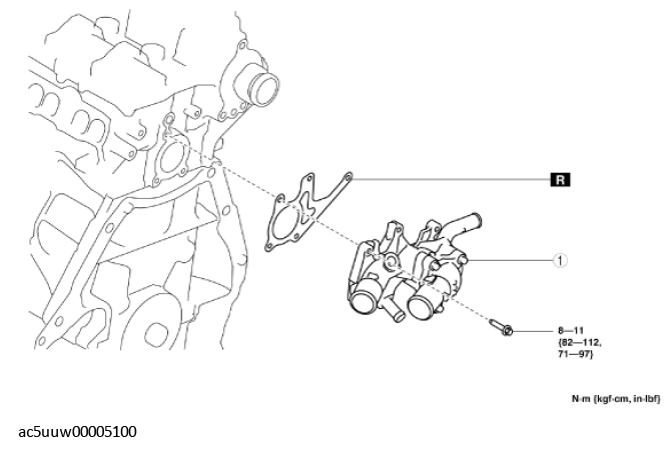

Fig 1: Removing Water Outlet Component With Bolt And Torque Specifications

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Water outlet component (See Water Outlet Component Installation Note .)
