Exhaust side

WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

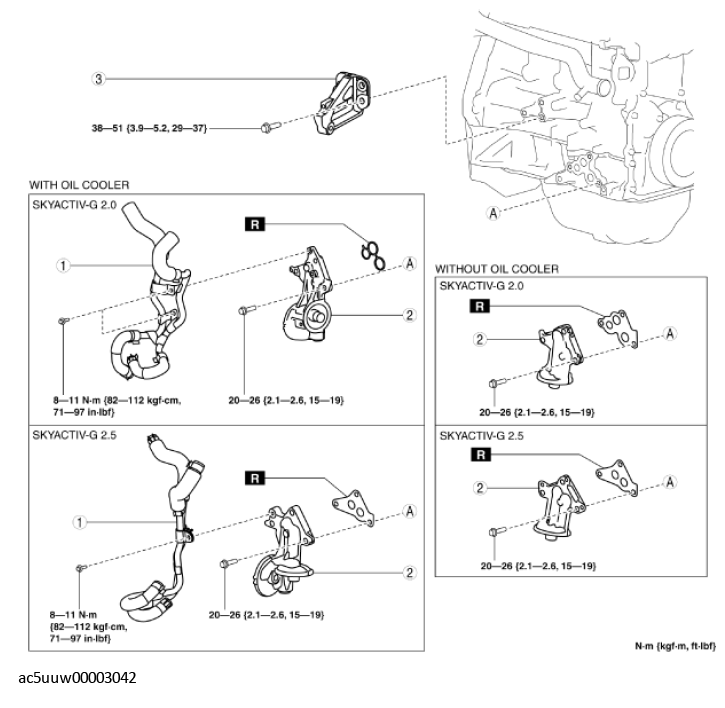

Fig 1: Removing Oil Filter Body With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Oil cooler water pipe component (With oil cooler) (See Oil Cooler Water Pipe Component Installation Note (SKYACTIV-G 2.0) .)
2	Oil filter body (See Oil Filter Body Installation Note .)
3	Exhaust manifold bracket (2WD) (See Exhaust Manifold Bracket Installation Note .)
