No. 1 Engine Mount (2WD): Notes

WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.
Install in the reverse order of removal.

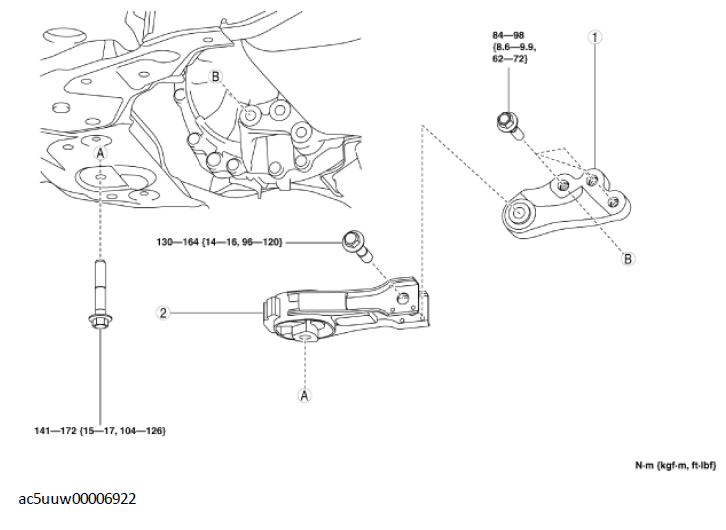

Fig 1: Installing Engine Mount Bracket With Bolts With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	No. 1 engine mount bracket (See No. 1 engine mount installation note (2WD) .)
2	No. 1 engine mount rubber (See No. 1 engine mount installation note (2WD) .)
