Thermostat Removal/Installation: Notes
WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- Never remove the cooling system cap or loosen the radiator drain plug while the engine is running, or when the engine and radiator are hot. Scalding engine coolant and steam may shoot out and cause serious injury. It may also damage the engine and cooling system.
- Turn off the engine and wait until it is cool. Even then, be very careful when removing the cap. Wrap a thick cloth around it and slowly turn it counterclockwise to the first stop. Step back while the pressure escapes.
- When you are sure all the pressure is gone, press down on the cap using the cloth, turn it, and remove it.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
- Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
- Remove the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
- Remove the PCM component. (See PCM REMOVAL/INSTALLATION .)
- Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- Refill the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
- Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION .)COMPONENT DESCRIPTION

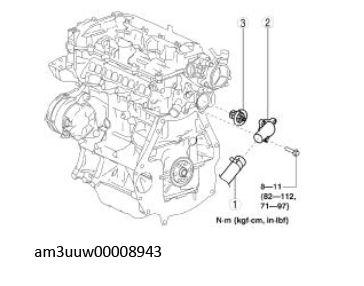

1 Lower radiator hose (Thermostat cover side) 2 Thermostat cover
(See Thermostat Cover Removal Note .)3 Thermostat
(See Thermostat Installation Note .)
