Power Liftgate (PLG) Drive Unit Installation Note

WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

If the power liftgate (PLG) drive unit is to be reused, perform the following procedure.
1. Remove the packing remaining on the power liftgate (PLG) drive unit.

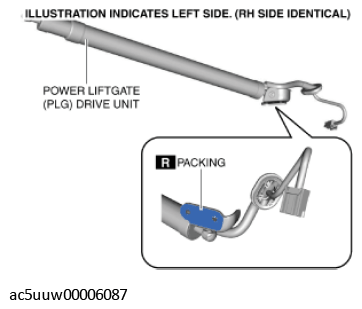

  Fig 1: Removing Packing On Power Liftgate (PLG) Drive Unit
  Courtesy of MAZDA MOTORS CORP.
2. Adhere new packing to the position shown in the figure.
