Front Side Trim Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front scuff plate. (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
Partially peel back the seaming welt.

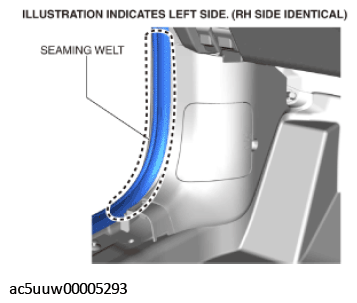

Fig 1: Front Side Trim Seaming Welt
Courtesy of MAZDA MOTORS CORP.
Remove the cap nut from the stud bolt.

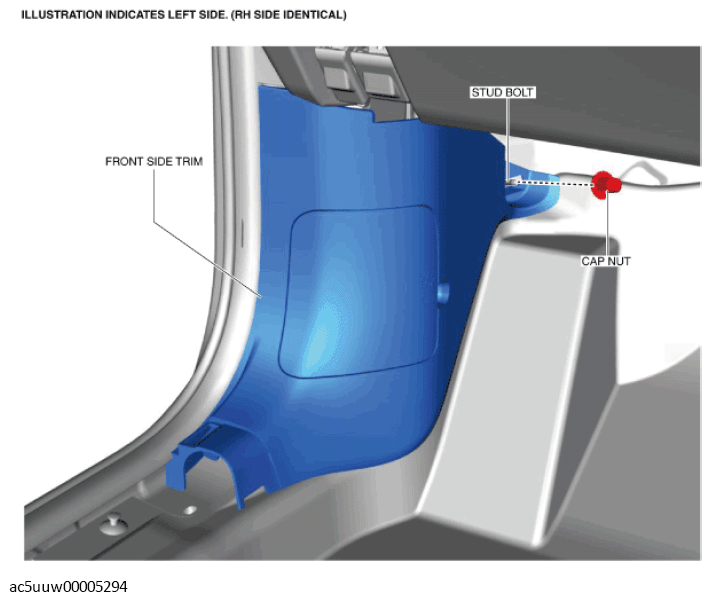

Fig 2: Front Side Trim, Cap Nut And Stud Bolt
Courtesy of MAZDA MOTORS CORP.
Pull the front side trim out of the stud bolt.

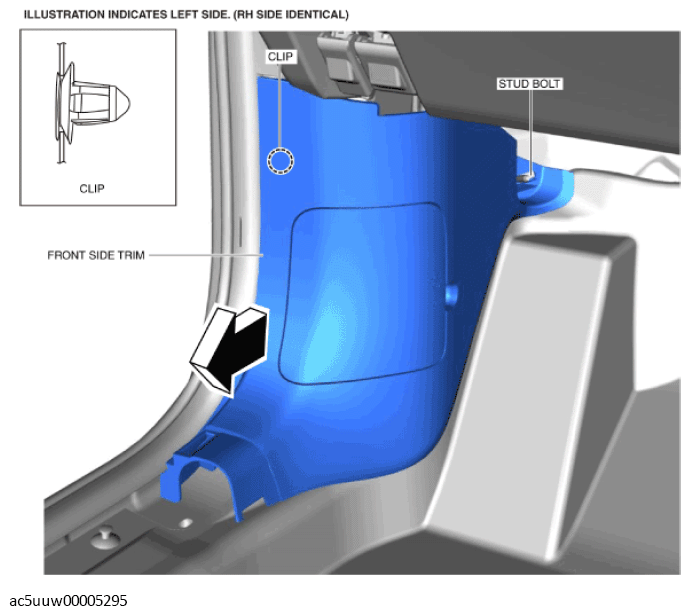

Fig 3: Pulling Front Side Trim Out Of Stud Bolt
Courtesy of MAZDA MOTORS CORP.
Pull the front side trim in the direction of the arrow shown in the figure and remove it while detaching the clip.
Install in the reverse order of removal.
